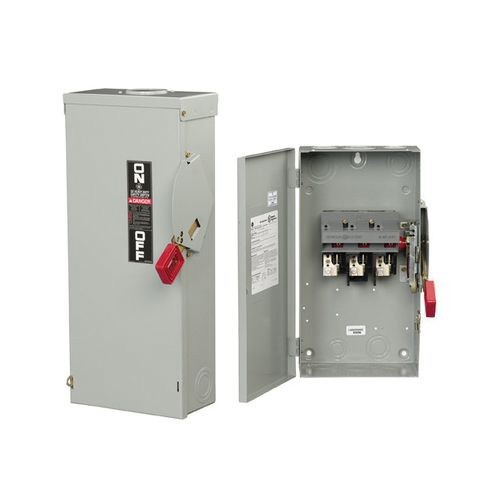

GE Spec-Setter™ TH3224J Fused Heavy Duty Safety Switch, 240 VAC, 200 A, 15 hp, 2 Poles
GE Spec-Setter™ TH3224J Fused Heavy Duty Safety Switch, 240 VAC, 200 A, 15 hp, 2 Poles
SKU: G-ETH3224J
Manufacturer Part Number: TH3224J
UPC: 783164092189
Features
- Quick-make, quick-break mechanism
- Full cover interlocks
- 240 VAC 15 hp 1 ph NEC, 40 hp at 250 VDC rating
- NEMA 5/12 drip/dust-tight rating
- 35.1 in H x 14.5 in W x 5 in D
- 2 AWG to 250 kcmil copper/aluminum wire range
Specification
| Number Of Poles | 2 |
|---|---|
| Number of Wires | 3 |
| Power Rating | 15 hp |
| Temperature Rating | 60 to 75 deg C |
| Type | Fusible |
| Voltage Rating | 240 VAC |
| Application | For commercial and industrial applications |
| Standard & Approvals | UL Listed, CSA Certified, GSA Compliant |
| Amperage Rating | 200 A |
| Dimensions | 15.1 in W x 10.1 in D x 35.1 in H |
| Enclosure Type | NEMA 5/12 |
