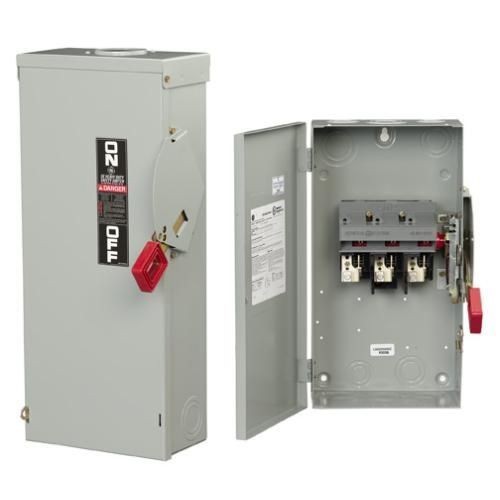

***CLOSEOUT*** GE Spec-Setter™ TH Fusible Heavy Duty Safety Switch, 600 VAC, 400 A, 3 Poles

***CLOSEOUT*** GE Spec-Setter™ TH Fusible Heavy Duty Safety Switch, 600 VAC, 400 A, 3 Poles
SKU: G-ETH3365
Manufacturer Part Number: TH3365
UPC: 783164009170
Features
- Donut handle ideal for hook stick operation and accepts 3 padlocks in the OFF position
- Direct-drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive ON/OFF indication
- Self-leveling, three-point mounting system
- Coin-proof, defeatable interlock
- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for Class H, K, J or R fuses, where applicable
- With Class R fuses or J fuses, 30 to 600 A switches have UL Listed short circuit rating of 200000 rms symmetrical A
- Switches rated 800 to 1200 A use Class L fuses and have a UL Listed short circuit rating of 10000 rms symmetrical A
- UL Listed as service entrance equipment when installed in accordance with the National Electric Code
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator Type | Handle |
| Amperage Rating | 400 A |
| Dimensions | 22.9 in W x 8.3 in D x 53.9 in H |
| Enclosure Type | NEMA 1 Indoor |
| Phase | 3 |
| Short Circuit Rating | 200 kA |
| Type | Heavy Duty Fusible |
| Voltage Rating | 600 VAC |
| Application | For Commercial and Industrial Applications where safety, high performance and continuity of service are essential |
| Standard & Approvals | CSA-C22.2 No. 4-04, Federal Specification W-S-865C, NEMA KS1 - 2013, Seismic Certified, UL 98 |
| Horsepower | 125 hp Standard Fuse/350 hp Time Delay |
| Closeout | YES |
| Catalog ID | G-ETH3365 |
| Series | TH |
