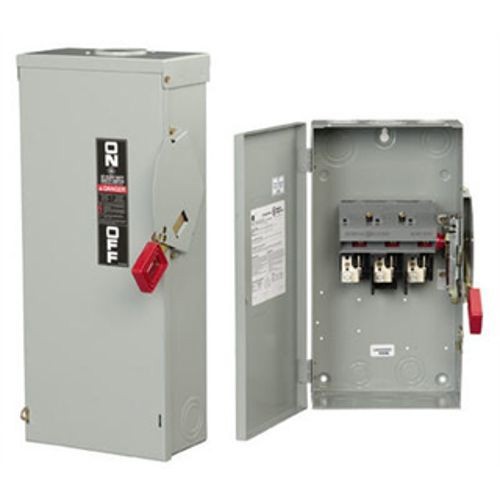

GE Spec-Setter™ TH4322R Fused Heavy Duty Safety Switch, 240 VAC, 60 A, 7-1/2 hp, 3 Poles
GE Spec-Setter™ TH4322R Fused Heavy Duty Safety Switch, 240 VAC, 60 A, 7-1/2 hp, 3 Poles
SKU: G-ETH4322R
Manufacturer Part Number: TH4322R
UPC: 783164009224
Documents
Short Description
Features
- Suitable for use as service equipment when installed in accordance with the national electrical code
- 12 to 2 AWG wire
- Full cover interlocks
- 60/75 deg C conductor rating
- 17.2 in H x 9.2 in W x 4.8 in D safety switch
- 3 hp at 1-phase, 7.5 hp at 3-phase 240 VAC NEC, 10 hp at 1-phase, 15 hp at 3-phase 240 VAC time delay, 10 hp at 250 VDC
- Quick make, quick break mechanisms
Specification
| Frequency Rating | 50/60 |
|---|---|
| Material | Stainless Steel |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 60 A |
| Enclosure Type | NEMA 3R |
| Phase | 3 |
| Short Circuit Rating | 200 |
| Temperature Rating | 60 to 75 deg C |
| Type | Fusible |
| Voltage Rating | 240 VAC |
| Application | Commercial and Industrial Applications |
| Horsepower | 7.5 hp |
| Dimensions | 9.7 in W x 7.9 in D x 17.2 in H |
| Catalog ID | G-ETH4322R |
| Standard & Approvals | CSA C22.2 No. 4-04, cUL Listed, Federal Specification WS-865C, Seismic Certified, UL Listed |
