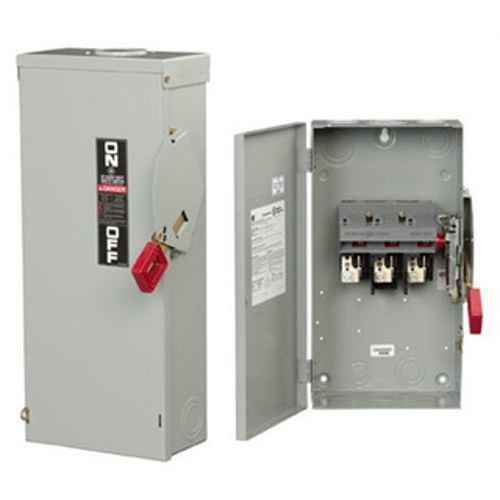

GE Spec-Setter™ TH4323R Fused Heavy Duty Safety Switch, 240 VAC, 100 A, 15 hp, 3 Poles

GE Spec-Setter™ TH4323R Fused Heavy Duty Safety Switch, 240 VAC, 100 A, 15 hp, 3 Poles
SKU: G-ETH4323R
Manufacturer Part Number: TH4323R
UPC: 783164009248
Documents
Short Description
Features
- Suitable for use as service equipment when installed in accordance with the national electrical code
- 10 to 1/0 AWG wire
- Full cover interlocks
- 60/75 deg C conductor rating
- 22.1 in H x 9.3 in W x 4.9 in D safety switch
- 7.5 hp at 1-phase, 15 hp at 3-phase 240 VAC NEC, 15 hp at 1-phase, 30 hp at 3-phase 240 VAC time delay, 20 hp at 250 VDC
- Quick make, quick break mechanisms
Specification
| Frequency Rating | 50/60 |
|---|---|
| Material | Stainless Steel |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Phase | 3 |
| Short Circuit Rating | 200 |
| Temperature Rating | 60 to 75 deg C |
| Type | Fusible |
| Voltage Rating | 240 VAC |
| Application | Commercial and Industrial Applications |
| Standard & Approvals | CSA C22.2 No. 4-04, cUL Listed, Federal Specification WS-865C, Seismic Certified, UL Listed |
| Amperage Rating | 100 A |
| Dimensions | 10.2 in W x 9.8 in D x 22.1 in H |
| Enclosure Type | NEMA 3R |
| Horsepower | 15 hp |
