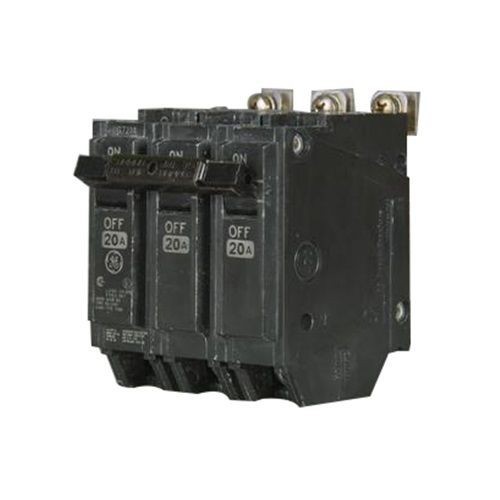

GE Q-Line® THHQB32020 Type THHQB Compact Molded Case Circuit Breaker, 240 VAC, 20 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic/LI/Non-Interchangeable Trip

Selected GE Q-Line® THHQB32020 Type THHQB Compact Molded Case Circuit Breaker, 240 VAC, 20 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic/LI/Non-Interchangeable Trip
GE Q-Line® THHQB32020 Type THHQB Compact Molded Case Circuit Breaker, 240 VAC, 20 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic/LI/Non-Interchangeable Trip

Documents

Short Description

Q line circuit-breakers are 1 in wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q line used for bolting to the bus connections of load centers and lighting panels. All Q line circuit-breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q line breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Features

  • Suitable for reverse feed
  • Standard continuous current rated
  • Fixed long time
  • Fixed instantaneous trip function
  • Copper/aluminum wire

Specification

Interrupt Rating
22 kA
Mounting Type
Bolt-On
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Catalog ID
G-ETHHQB32020
Dimensions
3 in W x 2-3/8 in D x 3-9/32 in H
Phase
3
Series
Q-Line
Temperature Rating
10 to 50 deg C
Trip Type
Internal Common/Non-Interchangeable/Thermal Magnetic/LI
Type
Type THHQB
Voltage Rating
240 VAC
Wire Size
14 to 8 AWG/12 to 8 AWG
Application
For residential and commercial applications
Standard & Approvals
UL E11592
