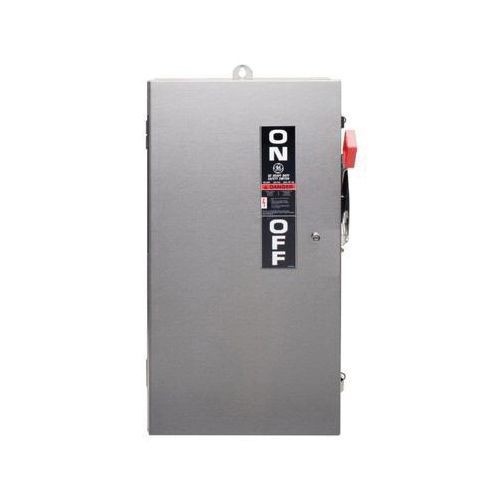

GE Spec-Setter® THN3363SS Heavy Duty Non-Fused Safety Switch, 600 VAC, 100 A, 100 hp, 3 Poles
GE Spec-Setter® THN3363SS Heavy Duty Non-Fused Safety Switch, 600 VAC, 100 A, 100 hp, 3 Poles
SKU: G-ETHN3363SS
Manufacturer Part Number: THN3363SS
UPC: 783164133240
Features
- Suitable for use as service equipment when installed in accordance with the national electrical code
- 14 to 1/0 AWG copper and 12 to 1/0 aluminum wire
- Full cover interlocks
- 60/75 deg C conductor rating
- 25.4 in H x 13.4 in W x 5.2 in D safety switch
- 40 hp at 3-phase 240 VAC NEC, 30 hp at 1-phase, 75 hp at 3-phase 480 VAC NEC, 40 hp at 1-phase, 100 hp at 3-phase 600 VAC NEC, 20 hp at 250 VDC
- Quick make, quick break mechanisms
- Water or dust tight construction
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Material | 304 Stainless Steel |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Temperature Rating | 60 to 75 deg C |
| Type | Heavy Duty Non-Fusible |
| Voltage Rating | 600 VAC |
| Application | For commercial and industrial applications |
| Standard & Approvals | UL 98, CSA Certified, GSA Compliant |
| Amperage Rating | 100 A |
| Enclosure Type | NEMA 4/4X |
| Dimensions | 14.3 in W x 9.6 in D x 25.4 in H |
| Power Rating | 40/100 hp |
