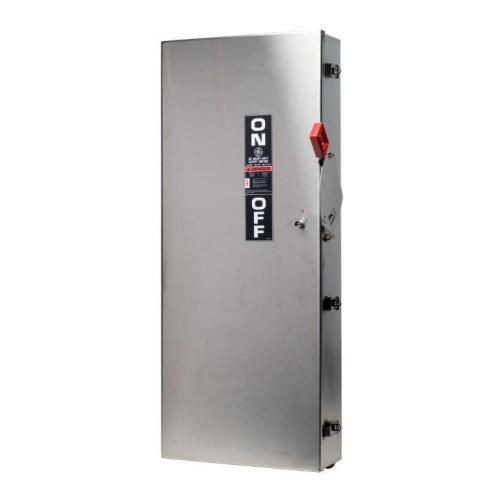

GE Spec-Setter® THN3364SS Heavy Duty Non-Fused Safety Switch, 600 VAC, 200 A, 150 hp, 3 Poles

Selected GE Spec-Setter® THN3364SS Heavy Duty Non-Fused Safety Switch, 600 VAC, 200 A, 150 hp, 3 Poles
GE Spec-Setter® THN3364SS Heavy Duty Non-Fused Safety Switch, 600 VAC, 200 A, 150 hp, 3 Poles

Documents

Short Description

GE's stainless steel safety switches are designed for commercial and industrial applications in corrosive environments where safety, high performance and continuity of service are essential. They are suitable for use as service equipment. The conductor rating is 60/75 deg C. Horsepower ratings are to UL listed maximums. Short circuit ratings are UL listed to 200000 rms symmetrical amps when class J or R fuses are installed.

Features

  • Suitable for use as service equipment when installed in accordance with the national electrical code
  • 2 AWG to 250 kcmil wire
  • Full cover interlocks
  • 60/75 deg C conductor rating
  • 35.1 in H x 14.5 in W x 5.2 in D safety switch
  • 60 hp at 3-phase 240 VAC NEC, 50 hp at 1-phase, 125 hp at 3-phase 480 VAC NEC, 50 hp at 1-phase, 150 hp at 3-phase 600 VAC NEC, 40 hp at 250 VDC
  • Quick make, quick break mechanisms
  • Water or dust tight construction

Specification

Frequency Rating
50/60 Hz
Material
304 Stainless Steel
Number Of Poles
3
Number of Wires
3
Phase
3
Short Circuit Rating
200 kA
Type
Non-Fusible
Voltage Rating
600 VAC
Application
Commercial and Industrial Applications
Amperage Rating
200 A
Horsepower
150 hp
Temperature Rating
60 to 75 deg C
Enclosure Type
NEMA 4/4X
Dimensions
15.5 in W x 9.6 in D x 35.1 in H
Standard & Approvals
CSA C22.2 No. 4-04, cUL Listed, Federal Specification WS-865C, Seismic Certified, UL Listed
