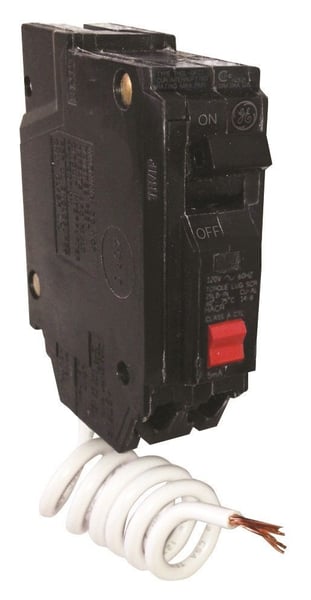

GE THQB2115GFT Type THQB Circuit Breaker, 120/240 VAC, 15 A, 10 kA at 120 VAC Interrupt, 2 Poles, Fixed Thermal Magnetic/LIG Trip
GE THQB2115GFT Type THQB Circuit Breaker, 120/240 VAC, 15 A, 10 kA at 120 VAC Interrupt, 2 Poles, Fixed Thermal Magnetic/LIG Trip
SKU: G-ETHQB2115GFT
Manufacturer Part Number: THQB2115GFT
UPC: 783164485547
Documents
Short Description
Features
- Copper stabs, tin plated for corrosion resistance, make the connection reliable and permanent
- Heat resistant thermoset cases and covers add stability and structural rigidity
- Trips are easy to spot because handles trip to the center position
- The dedicated calibration screw is cemented (not simply papered over) to prevent shifting, the result is stable calibration for optimum trip performance
- Class A (5 mA ground fault trip level)
- 14 to 8 AWG (Cu), 12 to 8 AWG (Al) wire range
- 10 kA at 120 VAC interrupt rating
Specification
| Temperature Rating | 10 to 50 deg C |
|---|---|
| Voltage Rating | 120/240 VAC |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL E11592/E51075, HACR Rated |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Connection Type | Load Lug |
| Frequency Rating | 50/60 Hz |
| Material | Plastic |
| Number Of Poles | 2 |
| Phase | 1 |
| Trip Range | Non-Interchangeable |
| Mounting Type | Bolted-On |
| Interrupt Rating | 10 kA at 120 VAC |
| Wire Size | 14 to 8 AWG, 12 to 8 AWG |
| Type | Type THQB |
| Frame | Q-Line |
| Dimensions | 2 in W x 2-3/8 in D x 3-9/32 in H |
| Catalog ID | G-ETHQB2115GFT |
| Actuator Type | Pivot Handle |
| Trip Type | Fixed Thermal Magnetic/LIG |
| Application | Residential and Commercial Applications |
