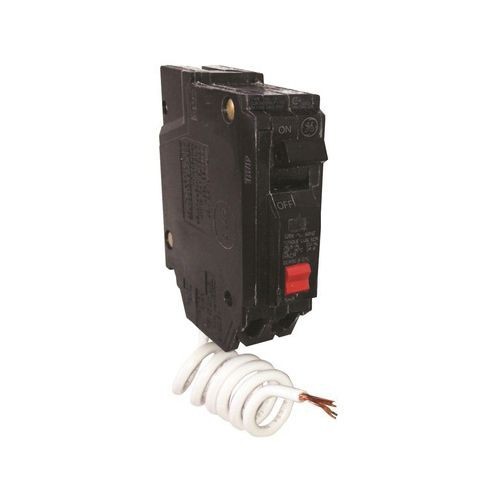

GE Q-Line® THQB2130GFT Molded Case Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Fixed Thermal Magnetic/LIG/Non-Interchangeable Trip

Selected THQB2130GFTGE Q-Line® THQB2130GFT Molded Case Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Fixed Thermal Magnetic/LIG/Non-Interchangeable Trip
THQB2130GFTGE Q-Line® THQB2130GFT Molded Case Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Fixed Thermal Magnetic/LIG/Non-Interchangeable Trip

Documents

Short Description

Q line circuit-breakers are 1 in wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q line used for bolting to the bus connections of load centers and lighting panels. All Q line circuit-breakers feature quick-make / quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q line breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Features

  • Suitable for reverse feed
  • Standard continuous current rated
  • Fixed long time
  • Ground fault circuit interrupter (5 mA)
  • HACR special markings
  • Fixed instantaneous trip function
  • Self-testing
  • Copper/aluminum wire

Specification

Interrupt Rating
10 kA
Number Of Poles
2
Phase
1
Temperature Rating
10 to 50 deg C
Voltage Rating
120/240 VAC
Amperage Rating
30 A
Trip Type
Non-Interchangeable/Fixed Thermal Magnetic/LIG
Standard & Approvals
UL E51075
Application
For residential and commercial applications
Type
Type THQB
Series
Q-Line
Mounting Type
Bolt-On
Wire Size
14 to 8 AWG/12 to 8 AWG
Dimensions
2 in W x 2-3/8 in D x 3-9/32 in H
