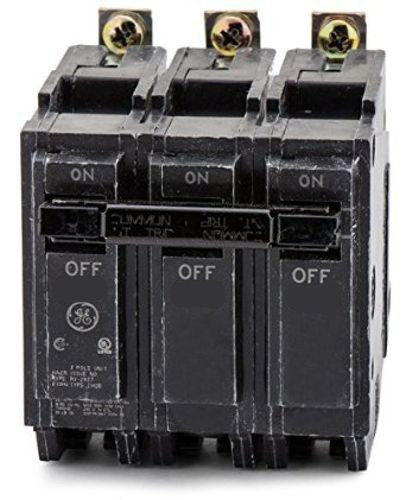

General Electric THQB32060 Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA, 3 Poles, Non-Interchangeable Trip

Selected THQB32060General Electric THQB32060 Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA, 3 Poles, Non-Interchangeable Trip
THQB32060General Electric THQB32060 Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA, 3 Poles, Non-Interchangeable Trip

Short Description

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2 and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Features

  • Standard continuous current rated
  • Fixed long time and fixed instantaneous
  • HACR rated special marking
  • LI trip function
  • 8 to 3 AWG aluminum/copper

Specification

Frame
Q-Line
Interrupt Rating
10
Mounting Type
Bolt-On
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
60 A
Catalog ID
G-ETHQB32060
Dimensions
2-3/8 in L x 3 in W x 3-9/32 in H
Phase
1
Trip Type
Non-Interchangeable
Voltage Rating
120/240 V
Wire Size
8 to 3 AWG
Standard & Approvals
UL E11592
Application
For commercial and residential applications
