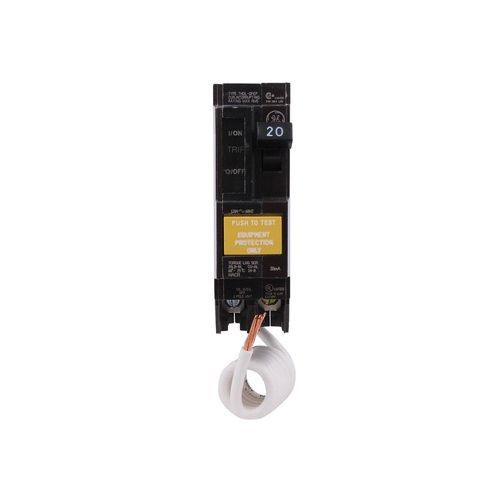

GE THQL1120GFEP Type THQL Ground Fault Circuit Breaker With 30 mA Equipment Protection Interrupter, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, LIG/Non-Interchangeable/Thermal Magnetic Trip

Selected THQL1120GFEPGE THQL1120GFEP Type THQL Ground Fault Circuit Breaker With 30 mA Equipment Protection Interrupter, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, LIG/Non-Interchangeable/Thermal Magnetic Trip
THQL1120GFEPGE THQL1120GFEP Type THQL Ground Fault Circuit Breaker With 30 mA Equipment Protection Interrupter, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, LIG/Non-Interchangeable/Thermal Magnetic Trip

Documents

Short Description

Q line circuit-breakers are 1 in wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q line used for connection to load centers and lighting panels. All Q line circuit-breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q line breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Features

  • Ground fault circuit interrupter (30 mA)
  • HACR, SWD special markings
  • Internal common trip
  • Copper/aluminum wire

Specification

Interrupt Rating
10 kA
Mounting Type
Plug-In
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Dimensions
2 in W x 2-3/8 in D x 3-9/32 in H
Phase
1
Series
Q-Line
Temperature Rating
10 to 50 deg C
Type
Type THQL
Voltage Rating
120/240 VAC
Wire Size
14 to 8 AWG/12 to 8 AWG
Application
For residential and commercial applications
Standard & Approvals
UL E11592
Catalog ID
G-ETHQL1120GFEP
Trip Type
Non-Interchangeable/Fixed Thermal Magnetic/LIG
