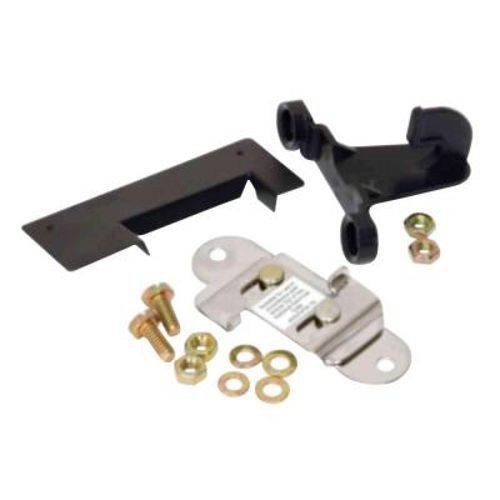

General Electric PowerMark Gold™ THQLLX1 General Electricnerator Interlock Kit, 150/225 A, For Use With Any Mod 6 150 to 225 A Main Breaker Loadcenter

Selected THQLLX1General Electric PowerMark Gold™ THQLLX1 General Electricnerator Interlock Kit, 150/225 A, For Use With Any Mod 6 150 to 225 A Main Breaker Loadcenter
THQLLX1General Electric PowerMark Gold™ THQLLX1 General Electricnerator Interlock Kit, 150/225 A, For Use With Any Mod 6 150 to 225 A Main Breaker Loadcenter

Short Description

With the PowerMark Gold generator Interlock kit, there's no need for a separate generator panel. The kit contains everything needed to make an existing load center a generator panel. It's quick, it's easy, it saves time and money.

Features

  • Converts any PowerMark Gold load center with a main breaker having a left-right handle orientation to be used as a generator panel
  • Interlocks 4-pole main breaker with 2-pole branch breakers in breaker positions 2-4
  • Ensures that the main breaker is in the off position before the branch breaker is back-fed from the generator for safety

Specification

Material
304 Stainless Steel
Includes
Interlock Plate, Base Plate, Rivets, Interlock Label, Hole Drilling Template, Auxiliary Breaker Retainer, Mounting Hardware and DEH-41103 Instruction Sheet
Dimensions
4-1/2 in H x 3-1/4 in W x 4 in D
Amperage Rating
150/225 A
Standard & Approvals
UL Listed, ANSI/NFPA 70, NEC Compliant
Application
For residential grade circuit breakers
Suitable For Use With
Any Mod 6 150 to 225 A Main Breaker Loadcenter
