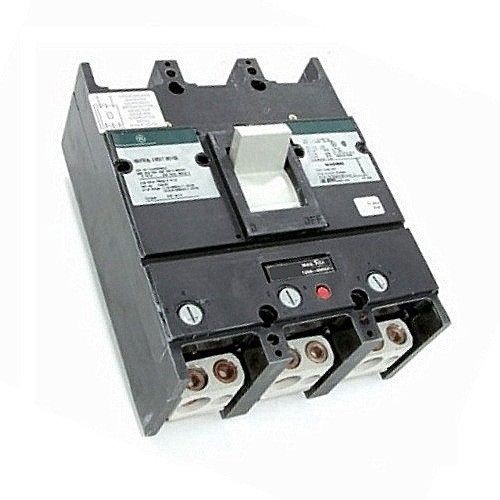

GE TJK436F000 Breaker Frame, 600 VAC, 125 to 400 A, 3 Poles
GE TJK436F000 Breaker Frame, 600 VAC, 125 to 400 A, 3 Poles
SKU: G-ETJK436F000
Manufacturer Part Number: TJK436F000
UPC: 783164013764
Documents
Features
- Not suitable for reverse feed
- Standard continuous current rated
- Fixed long time
- Adjustable instantaneous trip function
- 125 A, 150 A, 175 A, 200 A, 225 A, 250 A, 300 A, 350 A, 400 A amperage rating
Specification
| IR Rating | 30 kA at 480 VAC |
|---|---|
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 125 to 400 A |
| Catalog ID | G-ETJK436F000 |
| Series | Q-Line |
| Suitable For Use With | Molded Case Circuit Breakers |
| Type | Type TJK Standard |
| Voltage Rating | 600 VAC |
| Standard & Approvals | CSA LR40350, UL E11592 |
