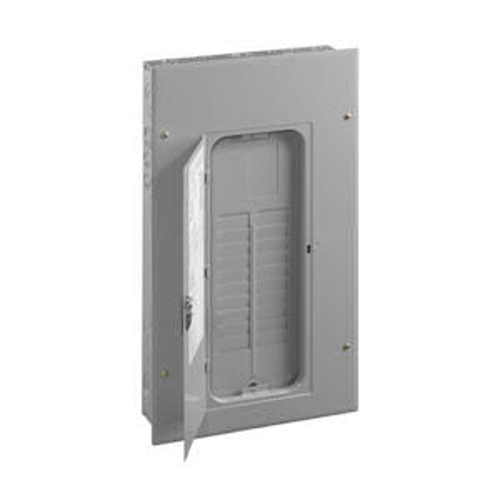

General Electric TL42420C PowerMark Plus TL 3-Phase Standard Main Lug Load Center, 208Y/120 VAC, 200 A, 65 kA Interrupt
General Electric TL42420C PowerMark Plus TL 3-Phase Standard Main Lug Load Center, 208Y/120 VAC, 200 A, 65 kA Interrupt
SKU: G-ETL42420C
Manufacturer Part Number: TL42420C
UPC: 783164189940
Documents
Short Description
Features
- Aluminum bus with copper mounting stabs providing copper-to-copper stab connections
- 60 deg or 75 deg C conductor rating
- Suitable for use as service entrance equipment when installed in accordance with the national electrical code
- 22 kAIC rms symmetrical, except where noted
- 6 - 42 circuit devices UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down
- One piece interior removes and reinstalls easily
- Full length neutrals are easier to wire, 2 reducing installation time and cos
- Minimum 100% neutral terminations
- Combination slotted/Robertson square drive speeds screw wiring
- Tie bar may be removed to split neutral/ground
- (42) 1 in space, (42), (1000) 1/2 in space
- 2/0 AWG - 250 kcmil aluminum
- Combination mounting
Specification
| Interrupt Rating | 65 |
|---|---|
| Mounting Type | Plug-In |
| Number of Circuits | 42 |
| Number of Spaces | 42 |
| Series | PowerMark Plus TL |
| Type | 3-Phase Standard |
| Voltage Rating | 208Y/120 VAC |
| Wire Size | 1 AWG to 250 kcmil |
| Wiring Configuration | 4-Wire |
| Application | Residential and Commercial |
| Standard & Approvals | GSA Compliant, UL Listed |
| Amperage Rating | 200 A |
| Dimensions | 39-3/16 in L x 14 in W x 3-3/4 in H |
| Breaker Mounting | Plug-In |
| Breaker Type | THQL |
| Enclosure Type | NEMA 1 |
