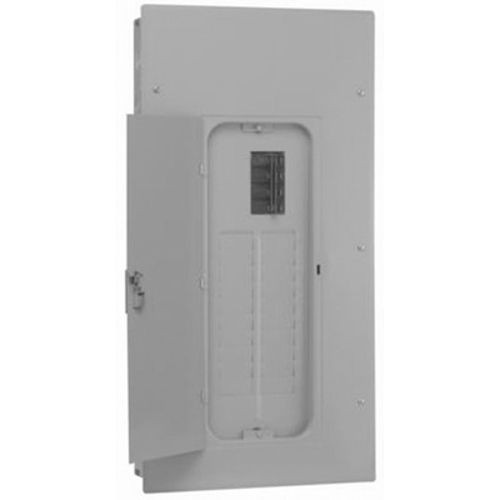

General Electric PowerMark Gold™ TLM4020CCU Type TLM 1-Phase Standard Convertible Main Lug Load Center With Door, 120/240 VAC, 200 A, 65 kA Interrupt
General Electric PowerMark Gold™ TLM4020CCU Type TLM 1-Phase Standard Convertible Main Lug Load Center With Door, 120/240 VAC, 200 A, 65 kA Interrupt
SKU: G-ETLM4020CCU
Manufacturer Part Number: TLM4020CCU
UPC: 783164112405
Features
- 60/75 deg C conductor rating
- Suitable for use as service entrance equipment when installed in accordance with the National electrical code
- 22 kAIC rms symmetrical
- 6 - 42 circuit devices UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down
- Indoor enclosure
- 40, 42, 4, 24, 16, 20, 32 - 1/2 in space
- Top, bottom feed
- Copper bus bar for excellent conductivity
- Convertible device
- Combination mounting
- Ground kit for top and bottom entry TGK42 (order separately)
Specification
| Interrupt Rating | 65 |
|---|---|
| Mounting Type | Flush |
| Number of Circuits | 40 |
| Number of Spaces | 40 |
| Type | Type TLM 1-Phase Standard |
| Voltage Rating | 120/240 V |
| Wire Size | 6 AWG to 250 kcmil Al/Cu |
| Wiring Configuration | 3-Wire |
| Standard & Approvals | UL/CUL Listed, GSA Compliant |
| Amperage Rating | 200 A |
| Dimensions | 39-3/16 in H x 14 in W x 3-3/4 in D |
| Breaker Mounting | Plug-In |
| Breaker Type | THQL |
| Bus Rating | 200 |
| Enclosure Box Size | NEMA 13 |
| Enclosure Type | NEMA 1 |
