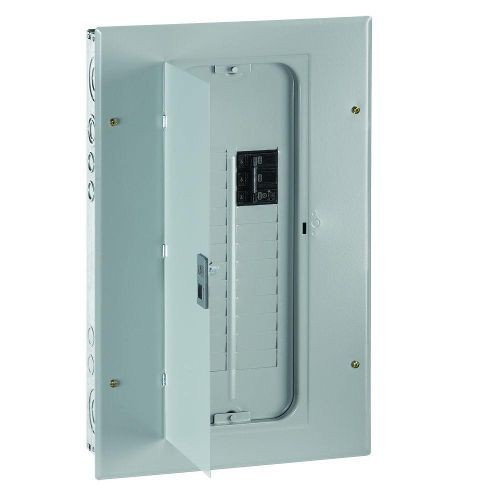

***CLOSEOUT*** General Electric PowerMark Plus™ TM18410C 3-Phase Standard Main Breaker Load Center, 208Y/120 VAC, 100 A, 22 kA Interrupt
***CLOSEOUT*** General Electric PowerMark Plus™ TM18410C 3-Phase Standard Main Breaker Load Center, 208Y/120 VAC, 100 A, 22 kA Interrupt
SKU: G-ETM18410C
Manufacturer Part Number: TM18410C
UPC: 783164189971
Features
- Suitable for use as service entrance equipment when installed in accordance with the national electrical code
- (18) 1 in, (8) 1/2 in space
- 60/75 deg C conductor rating
- Top/bottom feed
- 6 - 1/0 AWG copper, 4 - 1/0 AWG aluminum
- Combination indoor type 1 enclosure
- Main lug models field convertible to main breaker
- Split neutrals extend the full length of the interior for ease of wiring
- Straight through main wiring
- Compact box maintains optimum wire-bending space
- Front packed in inner carton for added protection
Specification
| Interrupt Rating | 22 |
|---|---|
| Mounting Type | Flush |
| Number of Circuits | 18 |
| Number of Spaces | 26 |
| Type | 3-Phase Standard |
| Voltage Rating | 208Y/120 VAC |
| Wiring Configuration | 4-Wire |
| Application | Residential and Commercial |
| Standard & Approvals | UL Listed |
| Amperage Rating | 100 A |
| Breaker Mounting | Plug-In |
| Breaker Type | THQL |
| Enclosure Box Size | NEMA 6 |
| Enclosure Type | NEMA 1 |
| Closeout | YES |
| Dimensions | 23 in H x 14 in W x 3-3/4 in D |
| Wire Size | 6 to 1/0 AWG, 4 to 1/0 AWG |
