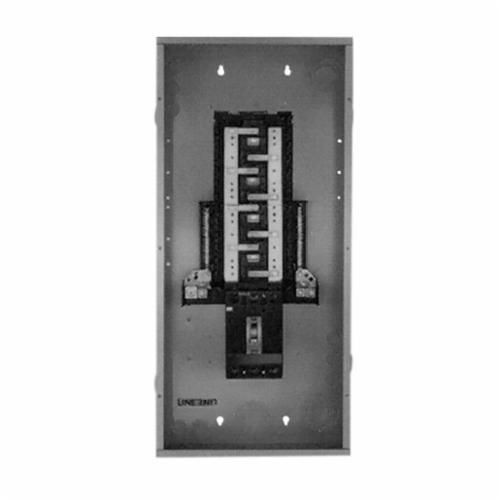

GE PowerMark Plus™ TM24415R 3-Phase Factory Installed Standard Main Circuit Breaker Load Center, 208Y/120 VAC, 150 A, 1 Pole, 22 kA Interrupt
GE PowerMark Plus™ TM24415R 3-Phase Factory Installed Standard Main Circuit Breaker Load Center, 208Y/120 VAC, 150 A, 1 Pole, 22 kA Interrupt
SKU: G-ETM24415R
Manufacturer Part Number: TM24415R
UPC: 783164190229
Documents
Features
- 60/75 deg C conductor rating
Specification
| Interrupt Rating | 22 |
|---|---|
| Mounting Type | Plug-In |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Dimensions | 14 in W x 4-5/8 in D x 35-7/16 in H |
| Enclosure Box Size | 35-7/16 in H x 14 in W x 4-5/8 in D |
| Enclosure Type | NEMA 3R |
| Type | 3-Phase Standard Top Feed |
| Voltage Rating | 208Y/120 VAC |
| Wire Size | 1 to 3/0 AWG Cu, 2/0 to 3/0 AWG Al |
| Wiring Configuration | 4-Wire |
| Application | Service Entrance Equipment and Outdoor Applications |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL Listed |
| Catalog ID | G-ETM24415R |
| Amperage Rating | 150 A |
| Number of Circuits | 24 |
