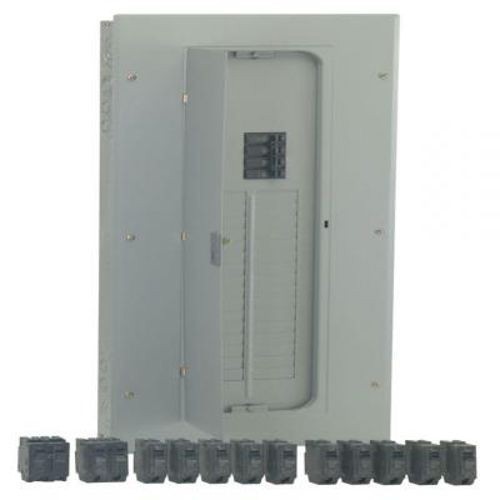

General Electric PowerMark Gold™ TM3220CCU2K 1-Phase Standard Main Breaker Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
General Electric PowerMark Gold™ TM3220CCU2K 1-Phase Standard Main Breaker Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
SKU: G-ETM3220CCU2K
Manufacturer Part Number: TM3220CCU2K
UPC: 783164302424
Features
- Suitable for use as service entrance equipment when installed in accordance with the National electrical code
- (32) 1 in space, (40) 1/2 in space
- 60/75 deg C conductor rating
- Top and bottom feed
- Features full length neutral bars for faster and convenient wiring
- 2/0 AWG to 250 kcmil aluminum
- Copper Bus housing
Specification
| Housing Material | Copper |
|---|---|
| Interrupt Rating | 22 |
| Mounting Type | Plug-In |
| Number of Circuits | 40 |
| Number of Spaces | 72 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 200 A |
| Catalog ID | G-ETM3220CCU2K |
| Dimensions | 35.44 in L x 14 in W x 3.75 in H |
| Enclosure Type | NEMA 1 |
| Type | 1-Phase Standard |
| Voltage Rating | 120/240 V |
| Wire Size | 1 AWG to 250 kcmil |
| Wiring Configuration | 3-Wire |
| Application | Residential, Electrical Distribution and Control Applications |
| Standard & Approvals | UL Listed |
