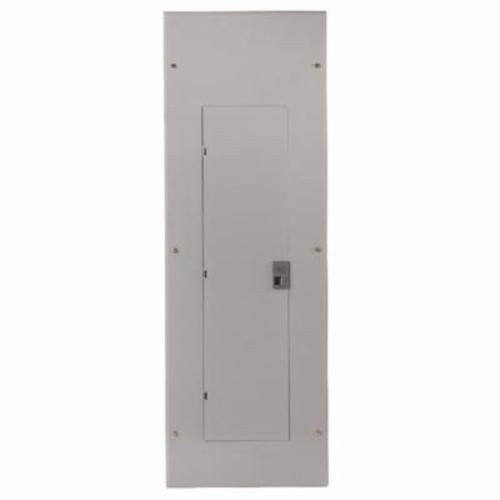

GE PowerMark Gold™ and Plus™ PowerMark Gold™ Three Phase Standard Main Breaker Load Center, 208 Y/120 VAC, 225 A
GE PowerMark Gold™ and Plus™ PowerMark Gold™ Three Phase Standard Main Breaker Load Center, 208 Y/120 VAC, 225 A
SKU: G-ETM42422C
Manufacturer Part Number: TM42422C
UPC: 783164190052
Documents
Features
- Suitable for use as service entrance equipment when installed in accordance with the national electrical code
- (42) 1 in, (20) 1/2 in space
- 60/75 deg C conductor rating
- Top feed
- 1 AWG - 300 kcmil copper, 2/0 AWG - 300 kcmil aluminum
- Combination indoor type 1 enclosure
- Straight through main wiring
- Main breaker is clearly marked and circuit numbers are stamped on front
- Compact box maintains optimum wire-bending space
Specification
| Interrupt Rating | 22 kA |
|---|---|
| Mounting Type | Flush |
| Type | Three Phase Standard |
| Voltage Rating | 208 Y/120 VAC |
| Wiring Configuration | 4-Wire |
| Application | Residential and Commercial |
| Standard & Approvals | UL Listed |
| Enclosure Type | NEMA 1 |
| Number of Circuits | 42 |
| Wire Size | 1 AWG to 300 kcmil, 2/0 AWG to 300 kcmil |
| Number of Spaces | 62 |
| Dimensions | 39-3/16 in H x 14 in W x 3-3/4 in D |
| Breaker Mounting | Plug-In |
| Amperage Rating | 225 A |
| Enclosure Box Size | 15 |
| Breaker Type | THQL |
