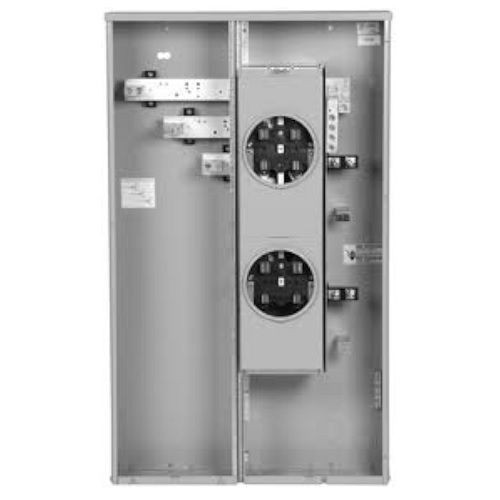

GE Mini Mod® III TMMR4220RHB 2-Position 3-Wire Meter Socket With 0RHB6630 Horn Bypass, 120/240/208Y/120 VAC, 200/400 A, 1 ph Phase, NEMA 3R Enclosure

Selected GE Mini Mod® III TMMR4220RHB 2-Position 3-Wire Meter Socket With 0RHB6630 Horn Bypass, 120/240/208Y/120 VAC, 200/400 A, 1 ph Phase, NEMA 3R Enclosure
GE Mini Mod® III TMMR4220RHB 2-Position 3-Wire Meter Socket With 0RHB6630 Horn Bypass, 120/240/208Y/120 VAC, 200/400 A, 1 ph Phase, NEMA 3R Enclosure

Documents

Short Description

Mini Mod III is a self-contained metering device consisting of main lugs and two to six meter sockets in one enclosure. Mini Mod III is supplied as one complete unit and the user cannot add additional meter sockets to the unit. When ordering, the user simply selects the socket main ampere rating, the number of meters and ring type or ringless. Mini Mod III is approved by major power companies, is UL listed, suitable for use as service entrance equipment and meets the service and electrical requirements of EUSERC and CECHA.

Features

  • Without cross bus
  • Indoor/outdoor construction
  • Incoming feed only
  • 200 A socket and 400 A horizontal bus rating

Specification

Number of Jaws
5
Minimum Order Qty
1
Order Interval
1
Cover Type
Ringless
Enclosure Type
NEMA 3R
Feed Type
Underground
Phase
1
Terminal Type
Lug
Voltage Rating
120/240/208Y/120 VAC
Wire Size
(2) 250 to 500 kcmil Cu/Al
Application
For garden apartments, small condominiums, duplex and town houses where six or fewer units are metered through one meter stack
Standard & Approvals
ARRA, Buy American Act, RoHS, EUSERC Compliant, UL Listed, CECHA Approved
Includes
Bondable Neutral, Strap, 11 in Mounting Z Rail, Factory Installed Swing Away Mounting Feet
Dimensions
25.5 in W x 7 in D x 42.69 in H
Catalog ID
G-ETMMR4220RHB
Amperage Rating
200/400 A
Type
2-Position 3-Wire
