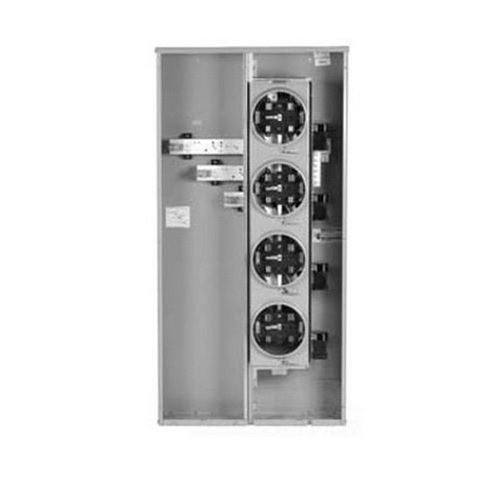

GE Mini Mod III TMMR4412R 4-Socket 3-Wire Modular Metering Socket, 120/240/208Y VAC, 125 A, 1 ph Phase, NEMA 3R Enclosure
GE Mini Mod III TMMR4412R 4-Socket 3-Wire Modular Metering Socket, 120/240/208Y VAC, 125 A, 1 ph Phase, NEMA 3R Enclosure
SKU: G-ETMMR4412R
Manufacturer Part Number: TMMR4412R
UPC: 783164195002
Documents
Features
- 3-wire
- 4-sockets
- 400 A main
- Swing away mounting feet factory installed
- 4 AWG to 300 kcmil service side and 14 to 4 AWG equipment ground side wire
- 11 in Z-rail
- Copper/aluminum wire
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Amperage Rating | 125 A |
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| Type | Ringless |
| Voltage Rating | 120/240/208Y VAC |
| Wire Size | 6 AWG to 600 kcmil, 2/0 AWG to 250 kcmil |
| Application | For indoor/outdoor applications |
| Standard & Approvals | UL Listed, MEG Approved |
| Includes | Bondable Neutral, Strap |
| Feed Type | Underground |
| Dimensions | 25-1/2 in W x 6-5/8 in D x 61 in H |
| Catalog ID | G-ETMMR4412R |
| Number of Jaws | 5 |
| Mounting Type | Z-Rail |
