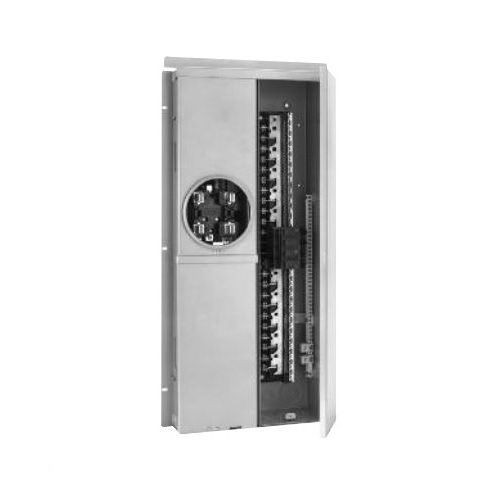

GE PowerMark Gold™ TSMR420CSCUAEP 3-Wire 4/8-Circuit Main Breaker Meter Socket Loadcenter With Horn Bypass, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
GE PowerMark Gold™ TSMR420CSCUAEP 3-Wire 4/8-Circuit Main Breaker Meter Socket Loadcenter With Horn Bypass, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
SKU: G-ETSMR420CSCUAEP
Manufacturer Part Number: TSMR420CSCUAEP
UPC: 783164486483
Documents
Features
- Increased durability and reliability
- Maximum circuit layout flexibility and ease of installation add up to a lower total installed cost
- Side opening door
- Accepts 1 in THQL or 1/2 in THQP branch circuit breakers
- Minimum 100% neutral terminations
- Generous wire room
- 3 in concentric knockout
- Factory installed main breaker
- 1-piece copper bus, tin plated for corrosion resistance
Specification
| Mounting Type | Surface |
|---|---|
| Phase | 1 |
| Voltage Rating | 120/240 VAC |
| Wire Size | 6 AWG to 350 kcmil Cu/Al |
| Application | Outdoor, Residential, Electrical Distribution and Control Applications |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL Listed, AEP Approved |
| Amperage Rating | 200 A |
| Dimensions | 33-9/16 in H x 14-9/16 in W x 6-3/16 in D |
| Cover Type | Ringless |
| Enclosure Type | NEMA 3R |
| Feed Type | Overhead/Underground |
| Type | 3-Wire 4/8-Circuit Main Breaker |
