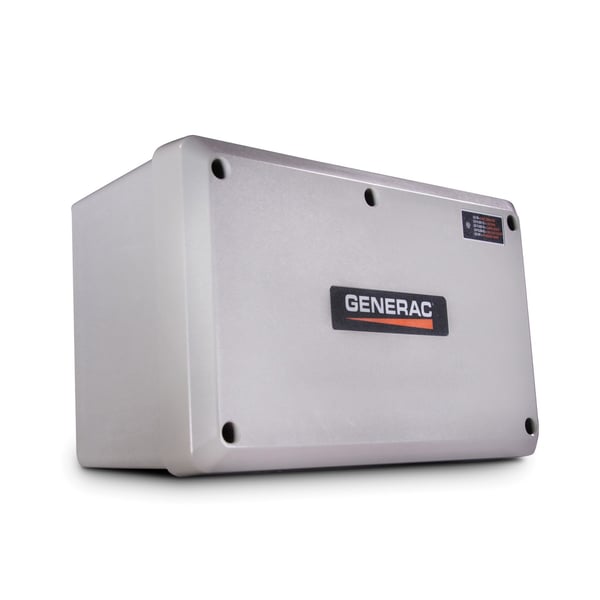

Generac® 7006 1-Phase Smart Management Module, 240 VAC, 100 A, 5.3 in L x 11.39 in W

Selected 7006Generac® 7006 1-Phase Smart Management Module, 240 VAC, 100 A, 5.3 in L x 11.39 in W
7006Generac® 7006 1-Phase Smart Management Module, 240 VAC, 100 A, 5.3 in L x 11.39 in W

Documents

Short Description

Generac®'s Smart Management Modules allow for more coverage with a smaller generator through smart load management. 100 A, 240 V 1 ph SMM (Smart Management Module) manages inrush of electrical loads on startup and automatically sheds them during generator overload conditions. It contains built-in intelligence, which eliminates the need for an external controller, and has lock-out functionality for non-critical loads under generator power. A NEMA 3R enclosure allows flexibility to install either indoors or outdoors. Compatible with 60 Hz and 50 Hz power.

Features

  • Wire-free technology - smart management modules are self-aware and operate autonomously, automatically shedding the managed loads to allow the generator to recover if sensing a drop in frequency
  • Prioritize loads - power items that are most important during an outage through customizable load priority selection and up to eight modules per system can be used
  • Smart management modules feature a lock-out system, which permits blocking of specific loads only when using generator power, allowing for the important loads to be powered more often
  • Externally visible LED status - view load status without opening the electrical box for convenient management of power during an outage
  • Maximum compatibility - Smart management modules work with any home standby generator for flexibility with any standby solution

Specification

Temperature Rating
149 deg F
Type
1-Phase
Voltage Rating
240 VAC
Width
11.39 in
Application
Indoor and Outdoor Applications
Standard & Approvals
cETL Listed, UL 50, PROP65: Operating, servicing, and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your equipment in a well-ventilated area and wear gloves or wash your hands frequently when servicing your equipment. For more information go to www.P65Warnings.ca.gov
Minimum Order Qty
1
Order Interval
1
Amperage Rating
100 A
Catalog ID
GEN7006
Depth
5.3 in
Frequency Rating
50/60 Hz
Length
5.3 in
