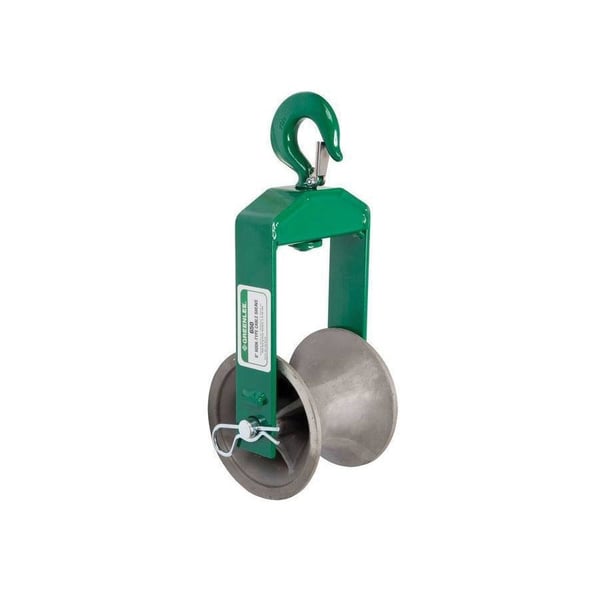

Greenlee® 650 Hook Sheave Assembly, 4000 lb, 6 in OD
Greenlee® 650 Hook Sheave Assembly, 4000 lb, 6 in OD
SKU: GRN650
Manufacturer Part Number: 650
UPC: 783310153245
Documents
Features
- Strong, welded steel frames
- Forged steel closure type hooks with 1 in opening
- 5 in wide aluminum alloy sheaves with self-lubricating bearings
- Select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
- 1-1/2 in minimum radius
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Material | Aluminum Alloy/Forged Steel |
| Includes | (1) 16797 Sheave Pin, (2) 50302 Sheave Pin Clip, (1) 15362 Sheave, (2) 16798 Sheave Bushing and (1) 16799 Yoke Frame |
| Standard & Approvals | ARRA Compliant, RoHS Compliant |
| Sheave Outside Diameter | 6 in |
| Catalog ID | GRN650 |
| Capacity | 4000 lb |
