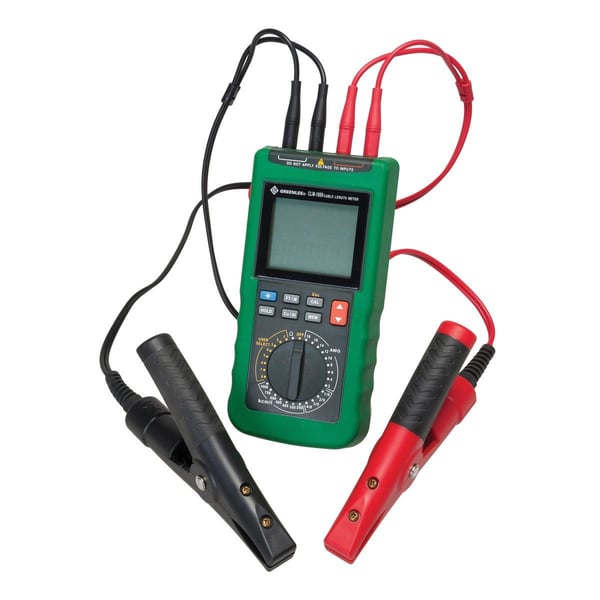

Greenlee® CLM-1000 Cable Length Meter, 15 ft to 100 kft, 199.99 mohms to 1999.9 ohm, 18 to 4/0 AWG/250 to 1000 kcmil, 4-1/2 Digit LCD Display
Greenlee® CLM-1000 Cable Length Meter, 15 ft to 100 kft, 199.99 mohms to 1999.9 ohm, 18 to 4/0 AWG/250 to 1000 kcmil, 4-1/2 Digit LCD Display
SKU: GRNCLM-1000
Manufacturer Part Number: CLM-1000
UPC: 783310027195
Features
- Large 20000 count LCD with backlight
- Kelvin-type alligator clips with solid copper contacts assure low-resistance connection to the cable being measured
- Automatic temperature compensation for maximum accuracy and convenience
- Automatic power off to maximize battery life
- Measures length of cable without removing it from the spool, counting turns or weighing the spool
- 20 pre-set cable sizes plus 8 user-programmable settings
- Pushbutton selection of copper or aluminum cable
- Displays length in feet or meters
- For AWG-kcmil wire and cable
- Replacement part - CLM-ROD calibration rods (pair) and CLM-CLIPS Kelvin clips (pair)
- Powered by (6) 1.5 V AA batteries
Specification
| Resistance Range | 199.99 mohms to 1999.9 ohm |
|---|---|
| Application | For measuring the length of insulated copper or aluminum conductors on a spool and to measure low resistance values |
| Standard & Approvals | ARRA Compliant |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Dimensions | 7.8 in L x 3.9 in W x 2.2 in H |
| Display Type | 4-1/2 Digit LCD |
| Measuring Range | 15 ft to 100 kft |
| Operating Temperature | 32 to 104 deg F deg F |
| Wire Size | 18 to 4/0 AWG/250 to 1000 kcmil |
| Storage conditions | -4 to 140 deg F |
| Catalog ID | GRNCLM-1000 |
