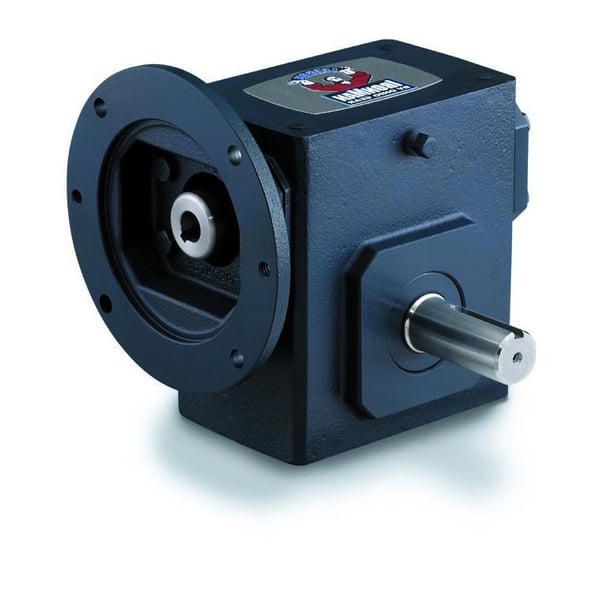

Grove Gear® IRONMAN® GR8180122.00 Right Angle Single Reduction Worm Gear Reducer, C-Face Quill Input, Shaft Output, 1.909 hp Input, 1.745 hp Output, 7.5:1 Gear, 233.3 rpm Maximum Output, 471 in-lb Output Torque Rating
Grove Gear® IRONMAN® GR8180122.00 Right Angle Single Reduction Worm Gear Reducer, C-Face Quill Input, Shaft Output, 1.909 hp Input, 1.745 hp Output, 7.5:1 Gear, 233.3 rpm Maximum Output, 471 in-lb Output Torque Rating
SKU: PTSGR8180122.00
Manufacturer Part Number: GR8180122.00
UPC: 690310007679
Documents
Short Description
Features
- One piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment
- Factory filled with premium Mobil® Glygoyle® 460 PAG lubricant
- Large oil capacity provides positive splash lubrication and superior cooling capability
- FKM double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals
- The unique quill seal guard protects the input seal from damage during motor installation
- Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life
- Oversized high speed bearings, positively retained for frequent reversing and start/stop cycles
- Tapered roller bearings on output shaft for high overhung and thrust load capacities
- All units are 100% run and leak tested at the factory to insure that you receive the highest quality product
- Ultimate application flexibility with all angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles
- Mounting dimensions are interchangeable with most industry standard reducers
- O-rings on all bearing covers, eliminating gaskets, sealants and leaks
- Oversized steel output shaft provides superior overhung load and torque characteristics
Specification
| InputSize | 5/8 in Dia |
|---|---|
| CentreDistance | 1-3/4 in |
| LubricationType | PAG Synthetic Oil |
| Mounting Type | Base |
| Output Type | Shaft |
| OutputSize | 0.875 in Dia x 2.05 in L |
| Material | Cast Iron |
| Keyway Size | 3/16 x 3/32 in Input, 0.1875 x 1.38 in Output |
| Horsepower | 1.909 hp Input, 1.745 hp Output |
| Input Type | C-Face Quill |
| Series | GR Series |
| Gear Ratio | 7.5:1 |
| Input Maximum Speed | 1750 rpm |
| Output Maximum Speed | 233.3 rpm |
| Torque Rating | 471 in-lb Output |
| Type | Right Angle Single Reduction |
