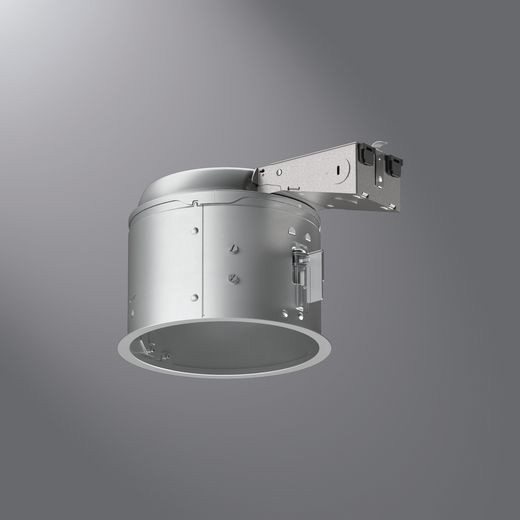

Halo AIR-TITE® E27RICAT E7 Remodel Recessed Lighting Housing, CFL/Halogen/Incandescent/LED Lamp, Insulated Insulation, 120 VAC, 6-1/4 in Ceiling Opening, Die Cast Aluminum Housing

Selected Halo AIR-TITE® E27RICAT E7 Remodel Recessed Lighting Housing, CFL/Halogen/Incandescent/LED Lamp, Insulated Insulation, 120 VAC, 6-1/4 in Ceiling Opening, Die Cast Aluminum Housing
Halo AIR-TITE® E27RICAT E7 Remodel Recessed Lighting Housing, CFL/Halogen/Incandescent/LED Lamp, Insulated Insulation, 120 VAC, 6-1/4 in Ceiling Opening, Die Cast Aluminum Housing

Documents

Short Description

The E27RICAT is a compact and efficient shallow recessed remodel housing optimized and listed for EISA compliant tungsten-halogen lamps, as well as incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial shallow ceiling applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible Halo LED lighting systems.

Features

  • Airtite exclusive housing gasket
  • Remodel housing design installs from below the finished ceiling
  • Exclusive remodel speed clamps securely lock from 3/8 to 2 in ceilings
  • Hinged junction box with Slide-N-Side™
  • Socket bracket adjusts lamp to various trim styles and designs
  • E26 screw base housing

Specification

Housing Material
Aluminum
Mounting Type
Ceiling
Type
Shallow
Voltage Rating
120 VAC
Application
Residential, Commercial, Damp Location and Wet Location Application
Standard & Approvals
UL, cUL Listed, ASTM E283, EISA, RoHS, Compliant
Depth
10-1/2 in
Width
10-1/2 in
Suitable For Use With
HALO® LED Lighting System and Trim
Lamp Wattage
90 W
Lamp Type
Halogen/CFL/LED
Insulation Type
Insulated
Height
5-3/16 in
Includes
Quick Connect™ Wiring Tray With Push-in Wire Nut
Diameter
6 in
Ceiling Opening
6-1/4 in
