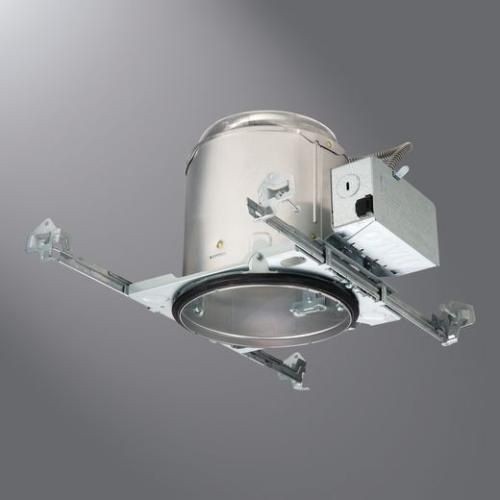

Halo E7ICATNB New Construction Insulated Recessed Housing Without Socket Bracket, E26 Screwbase Incandescent Lamp, 120 VAC, 6-1/2 in Ceiling Opening, Aluminum Housing

Selected Halo E7ICATNB New Construction Insulated Recessed Housing Without Socket Bracket, E26 Screwbase Incandescent Lamp, 120 VAC, 6-1/2 in Ceiling Opening, Aluminum Housing
Halo E7ICATNB New Construction Insulated Recessed Housing Without Socket Bracket, E26 Screwbase Incandescent Lamp, 120 VAC, 6-1/2 in Ceiling Opening, Aluminum Housing

Short Description

The E7ICATNB is a compact and efficient recessed optimized and listed for EISA compliant tungsten-halogen lamps, as well as Incandescent, CFL and LED integrated lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible Halo® LED lighting systems. The E7ICATNB can save installation time. It is designed without a socket plate for use with socket supporting trims only. With these trims there is no need to spend time removing the socket plate and the fixed lamp position of socket supporting trims saves on lamp adjustment time too.

Features

  • Air-Tite™ exclusive housing gasket
  • All-Nail bar hangers with pre-installed nail and integral T-grid clip
  • Q-channel interlocking hanger bars
  • Quick connect push-in wire nuts included
  • Hinged junction box with Slide-N-Side™
  • No socket bracket speeds install, for use with socket supporting trims
  • Hanger bars feature Pass-N-Thru™ tool-less shortening

Specification

Housing Material
Aluminum
Lamp Wattage
90 W
Mounting Type
Ceiling
Voltage Rating
120 V
Ceiling Opening
6/1/2002 12:00:00 AM
Height
6/3/2004 12:00:00 AM
Includes
Bar Hangers, q-Channel Bars, Hinged Junction Box, Push Wire Nuts and Clear Caps
Depth
10/3/2008 12:00:00 AM
Standard & Approvals
ARRA Compliant, ASTM E283, Buy American Act, cULus 1598, cULus Damp For Wet Listed, EISA Compliant, RoHS Compliant
Application
Commercial, Residential and Lighting Applications
Width
7-1/4
Type
New Construction
Suitable For Use With
HALO® LED Lighting System/Insulated Ceiling/Trim
Lamp Type
E26 Screwbase Incandescent
Diameter
6
