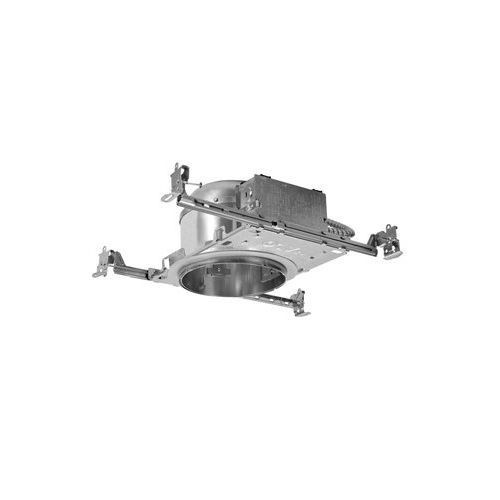

Halo Air-Tite™ H27ICAT Shallow Single Wall New Construction Housing, Incandescent Lamp, IC Insulation

Selected H27ICATHalo Air-Tite™ H27ICAT Shallow Single Wall New Construction Housing, Incandescent Lamp, IC Insulation
H27ICATHalo Air-Tite™ H27ICAT Shallow Single Wall New Construction Housing, Incandescent Lamp, IC Insulation

Documents

Short Description

The H27ICAT recessed housing is designed for shallow ceilings and is a standard in the industry for both light commercial and residential applications. H27 series features robust construction, feed-through listing, Got Nail! bar hangers; and may support use of higher wattage lamps. A wide variety of trims allows a number of different lighting effects to be created with one basic housing. The H27ICAT is for installations where the housing will be in direct contact with insulation,* and its Air-Tite design will also meet restricted air flow code requirements. May be retrofit with compatible Halo LED lighting systems.

Features

  • Got Nail™ bar hangers
  • Pass-N-Thru™ tool-less shortening of bar hangers
  • Slide-N-Side™ wire traps
  • Quick connect wiring connectors included in junction box
  • Thermally protected
  • Die-formed housing and plaster frame
  • Housing may be removed from plaster frame for junction box access
  • No socket bracket, for use with socket supporting trims

Specification

Height
5 in
Housing Material
Aluminum
Insulation Type
IC
Lamp Type
Incandescent
Mounting Type
Ceiling
Number of Lamps
1
Minimum Order Qty
1
Order Interval
1
Depth
7-1/2 in
Suitable For Use With
General Purpose Downlighting
Type
Shallow Single Wall
Voltage Rating
120 VAC
Width
10.5 in
Application
For use in insulated ceilings
Standard & Approvals
cUL Listed, RoHS Compliant
Catalog ID
HALH27ICAT
Diameter
6 in
Ceiling Opening
6-1/2 in
