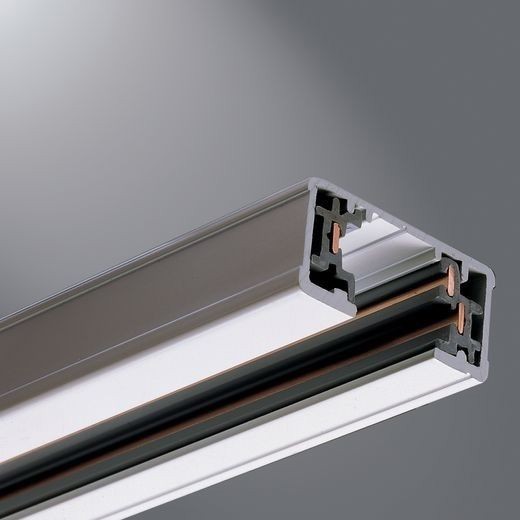

Halo Power-Trac™ L653P 1-Circuit Miniature Track System, 140-1/8 in L x 1-3/8 in W x 11/16 in D, Aluminum

Selected HALL653P
HALL653P

Documents

Short Description

Miniature size, decorator finishes, push-in connectors, economy, all combine to make single-circuit Miniature Trac perfect for residential or commercial use. Polarized connectors and end caps are molded polycarbonate. Halo Miniature Track accepts both Halo and Lazer-by Halo lampholders.

Features

  • 0.060 in nominal wall thickness
  • Solid copper bus bars cross-section equivalent to 12 AWG wire
  • Extruded polyvinyl insulator
  • Exclusive independent grounding bus conductor
  • Maintains an independent positive ground 12 AWG path between lampholder, Trac channel and building's ground system
  • Cross section equivalent of 12 AWG wire
  • Visual polarity groove indicates proper electrical installation of lampholder adapters
  • Track system is recommended for ceiling mount only, for alternate mounting methods consult factory
  • 12 ft nominal size

Specification

Material
Aluminum
Minimum Order Qty
1
Order Interval
1
Finish
White
Width
1-3/8 in
Standard & Approvals
cULus Listed, ARRA Eligible, EISA Compliant
Type
1-Circuit
Suitable For Use With
Halo® and Lazer-by-Halo Lampholders
Dimensions
144 in L x 1-3/4 in W x 1-3/4 in H
Depth
11/16 in
Catalog ID
HALL653P
Length
140-1/8 in
