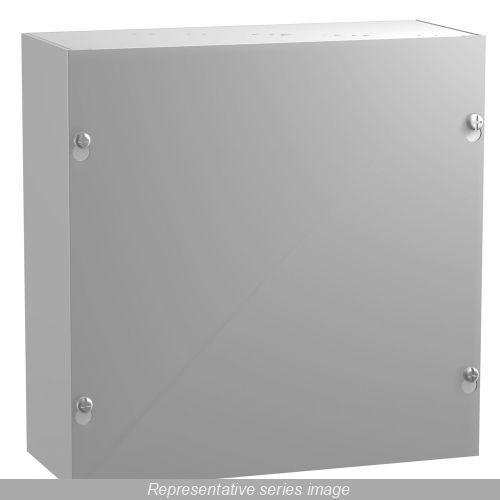

Hammond® CS10106 Junction Box, 10 in H x 10 in W x 6 in D, Screw Cover, NEMA 1/IP20 NEMA Rating, 12/14/16 ga Mild Steel
Hammond® CS10106 Junction Box, 10 in H x 10 in W x 6 in D, Screw Cover, NEMA 1/IP20 NEMA Rating, 12/14/16 ga Mild Steel
SKU: HMNCS10106
Manufacturer Part Number: CS10106
UPC: 623980360263
Features
- Flat steel covers fastened with plated steel screws
- Keyhole slots permit cover to be lifted off without removing screws entirely
- Through holes in back for wall mounting
- Grounding location embossed in body
Specification
| Height | 10 in |
|---|---|
| Mounting Type | Wall |
| NEMA Rating | NEMA 1/IP20 |
| Series | CS |
| Width | 10 in |
| Standard & Approvals | CSA Certified, IEC 60529, UL 50, RoHS Compliant |
| Color | ANSI 61 Gray |
| Cover Type | Screw |
| Depth | 6 in |
| Finish | Powder Coated |
| Capacity | 600 cu-in |
| Application | General Purpose Indoor Commercial use as a Junction/Pull/Switch Box |
| Material | 12/14/16 ga Mild Steel |
