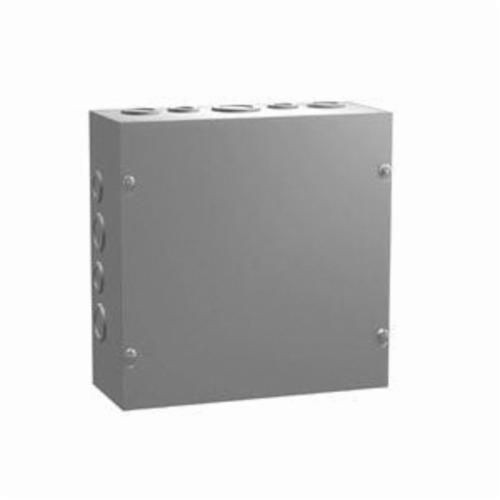

Hammond® CSKO10104 Junction Box With Knockout, 10 in H x 10 in W x 4 in D, Screw Cover, NEMA 1 NEMA Rating, Mild Steel
Hammond® CSKO10104 Junction Box With Knockout, 10 in H x 10 in W x 4 in D, Screw Cover, NEMA 1 NEMA Rating, Mild Steel
SKU: HMNCSKO10104
Manufacturer Part Number: CSKO10104
UPC: 623980360645
Features
- Formed and spot welded from 16 or 14 gauge steel depending on size
- Flat steel covers fastened with plated steel screws
- Keyhole slots permit cover to be lifted off without removing screws entirely
- Easily removed knockouts on all 4 sides (see drawings for sizes and locations)
- Through holes in back for wall mounting
- Grounding location embossed in body
- Enclosure and cover are finished in ANSI 61 gray powder coating
Specification
| Length | 10 in |
|---|---|
| Mounting Type | Wall |
| NEMA Rating | NEMA 1/IP20 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Entry | (4) Side, (5) Top and Bottom Knockouts |
| Catalog ID | HMNCSKO10104 |
| Color | Gray |
| Cover Type | Screw |
| Depth | 4 in |
| Finish | Powder Coated |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
| Material | Mild Steel |
| Application | For general purpose indoor commercial use as a junction, pull or switch box |
| Width | 10 in |
| Series | CSKO |
| Capacity | 400 cu-in |
