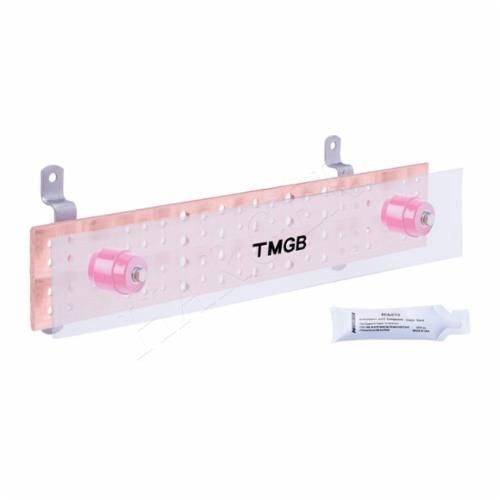

Harger® TGBI14412TMGB TIA-607 Style Ground Bar, 12 in L x 4 in W x 1/4 in H
Harger® TGBI14412TMGB TIA-607 Style Ground Bar, 12 in L x 4 in W x 1/4 in H
SKU: HGRTGBI14412TMGB
Manufacturer Part Number: TGBI14412TMGB
UPC: 808475039088
Documents
Features
- Accepts two hole lugs with 5/16 in or 7/16 in bolt holes
- 1/4 in THK x 4 in wide electrolytic tough pitch copper alloy 110
- (12) 5/16 in, (6) 7/16 in mounting holes
Specification
| Material | Copper |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bar Length | 12 in |
| Bar Width | 4 in |
| Catalog ID | HGRTGBI14412TMGB |
| Standard & Approvals | UL 467, BICSI, TIA 607 Standards, RoHS Compliant |
| Type | TIA-607 Style |
| Finish | Electro Tin Plated |
| Bar Height | 1/4 in |
| Mounting Hole Quantity | 18 |
| Includes | 1/2 oz Tube of Antioxidant, 1-1/2 in Insulators and 1 in Offset Stainless Steel Mounting Bracket |
