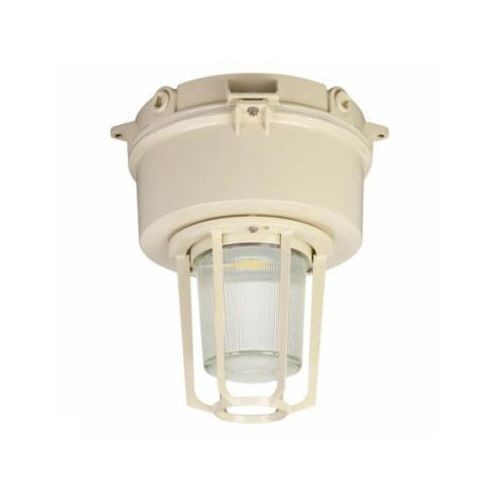

Hazlux® UNIPAK™ DL015EUN0TGCEU 3 Series Standard Area Lighting Fixture, (1) LED Lamp, 122 W Fixture, 120/277 VAC, Epoxy Powder Coated Housing
Hazlux® UNIPAK™ DL015EUN0TGCEU 3 Series Standard Area Lighting Fixture, (1) LED Lamp, 122 W Fixture, 120/277 VAC, Epoxy Powder Coated Housing
SKU: HAZDL015EUN0TGCEU
Manufacturer Part Number: DL015EUN0TGCEU
UPC: 786607187329
Features
- With thermal and heat-resistant prismatic glass globe, cast aluminum guard, LED lamp
- Faster and easier installation with simple hinge arrangement that permits "hands free" wiring
- Instant on/instant restrike
- Exceptional energy efficient LED technology reduce maintenance and prevent downtimes
- Rated for extreme temperature -40 to 55 deg C or -35 to 40 deg C depending on mode
- Retrofits into existing Hazlux® 3 applications
- Cast, copper free aluminum construction for high strength, light weight and corrosion resistance
- The paint used in our standard finish is baked, electro deposited, pure epoxy powder
- All exposed hardware is corrosion resistant stainless steel
- Soft start, in-rush maximum current
- AC over voltage, over temperature, load short circuit protection
- Labor, saving installation and maintenance friendly construction
- Labeled for shipment to the United States
- Standard housing driver
Specification
| Housing Finish | Epoxy Powder Coated |
|---|---|
| Lamp Type | LED |
| Lens Type | Prismatic Glass |
| Lumens | 15600 Lumens |
| Number of Lamps | 1 |
| Voltage Rating | 120/277 VAC |
| Ballast Type | Electronic |
| Color Rendering Index (CRI) | 70 |
| Color Temperature | 5000 K |
| Enclosure Type | NEMA 4X |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA C22.2 File No. 137, cCSAus Certified, Class I Division 2, Groups A, B, C, D, Class I Zone 2, Groups IIC, IIB, IIA, Class II Division I, 2, Groups E, F, G, Class II, DLC Listed, UL 1598A/844 |
| Fixture Wattage | 122 W |
| Application | Hazardous and Marine Locations |
| Housing Material | Copper-Free Aluminum |
