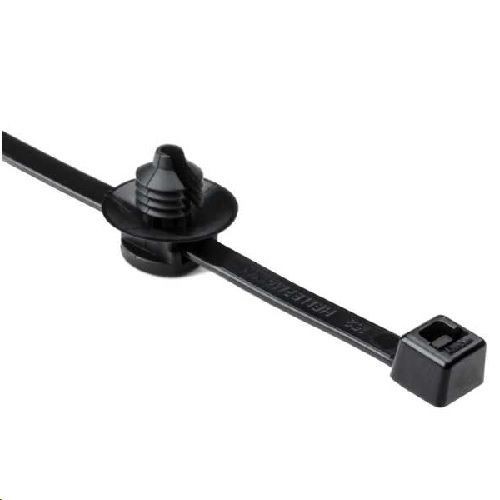

HellermannTyton 156-00157 Type T50RFT6 2-Piece Fir Tree Mount Cable Tie, 8 in L x 0.18 in W x 1.2 mm THK, Polyamide 6.6

Selected HellermannTyton 156-00157 Type T50RFT6 2-Piece Fir Tree Mount Cable Tie, 8 in L x 0.18 in W x 1.2 mm THK, Polyamide 6.6
HellermannTyton 156-00157 Type T50RFT6 2-Piece Fir Tree Mount Cable Tie, 8 in L x 0.18 in W x 1.2 mm THK, Polyamide 6.6

Short Description

HellermannTyton fir tree mounts provide a secure grip in a mounting hole and protect against dirt and other impurities. The mount can slide along the strap of the cable tie for proper orientation. The fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.

Features

  • Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation
  • Fir tree provides low insertion effort yet demonstrates high extraction resistance
  • Disc feature prevents rattling in high vibration applications and protects against debris ingress

Specification

Lock Mechanism
Self-Affixing
Material
Polyamide 6.6
Temperature Rating
-40 to 221 deg F
Tensile Strength
50 lb
Width
0.18 in
Standard & Approvals
RoHS Compliant, UL 94 HB Flammability Rating
Bundle Diameter
0.06 to 2 in
Color
Black
Length
8 in
Application
For use in applications where the ease of insertion and the difficulty of accidental extraction is a high priority; this can be used in a wide range of applications throughout various types of products, anything from aircraft, to switch-gears, to washing machines
Type
Type T50RFT6 2-Piece
Thickness
1.2 mm
