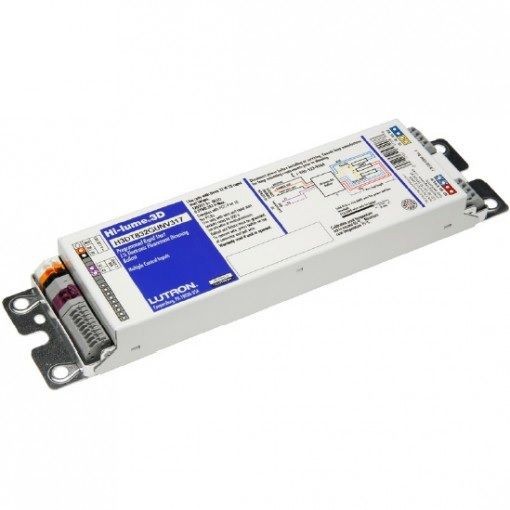

Hi-Lume® 3D H3DT550GU110 Electronic Dimming Ballast, T5 Twin Fluorescent Lamp, 50 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor

Selected Hi-Lume® 3D H3DT550GU110 Electronic Dimming Ballast, T5 Twin Fluorescent Lamp, 50 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor
Hi-Lume® 3D H3DT550GU110 Electronic Dimming Ballast, T5 Twin Fluorescent Lamp, 50 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor

Documents

Short Description

Hi-Lume® 3D architectural electronic dimming ballasts are designed to meet the most demanding lighting requirements. By providing industry leading performance with a full-range of 100% to less than 1% fluorescent dimming, Hi-lume 3D ballasts enable you to provide the ideal visual environment for any application.

Features

  • Hi-Lume® 3D ballasts deliver high dimming ratios and efficiency in a slim-profile enclosure, making it a great choice for low-profile architectural fixtures
  • Because Hi-Lume® 3D is microprocessor-controlled, it can operate on the EcoSytem digital control bus and has the ability to listen, think, decide and remember, this provides a new level of flexibility in configuring lighting while saving energy
  • Continuous, flicker-free dimming from 100% to less than 1% for T8, 1% for T5 and T5-HO and 5% for T5 Twin-tube
  • Programmed rapid start design preheats lamp cathodes before applying full arc voltage to enhance lamp life
  • Lamps turn on to any dimmed level without flashing to full brightness
  • Low harmonic distortion throughout the entire dimming range maintains power quality
  • Frequency of operation ensures that ballast does not interfere with infrared devices operating between 38 and 42 kHz
  • Inrush current limiting circuitry eliminates circuit breaker tripping, switch arcing, relay failure and component life degradation
  • Ballasts maintain consistent light output for different lamp lengths, ensuring fixture uniformity
  • Ultra quiet operation
  • Protected from miswires of any input power to control lead, or from lamp leads to each other and ground
  • <=90% non condensing relative humidity, 75 deg C max ballast case temperature, class A sound rating

Specification

Frequency Rating
50/60 Hz
Lamp Wattage
50 W
Minimum Starting Temperature
10 deg C
Mounting Type
Threaded
Number of Lamps
1
Start Type
Programmed Rapid
Thermal Protection
Class P
Total Harmonic Distortion
<=10%
Type
Electronic
Voltage Rating
120/240/277 VAC
Standard & Approvals
UL 935, CSA C22.2 No. 74, ANSI C82.11, RoHS Compliant, FCC Part 18 RFI/EMI Regulations, ANSI C62.41 Cat A, ANSI/ESD S20.20, ISO 9001.2000, CEC Title 20
Ballast Factor
1
Dimmable
Yes
Amperage Rating
0.45/0.23/0.2 A
Wattage
53.5/54.6/54.8 W
Power Factor
>=0.95
Lamp Type
T5 Twin Fluorescent
Dimensions
9.5 in L x 1 in W x 2.38 in H
