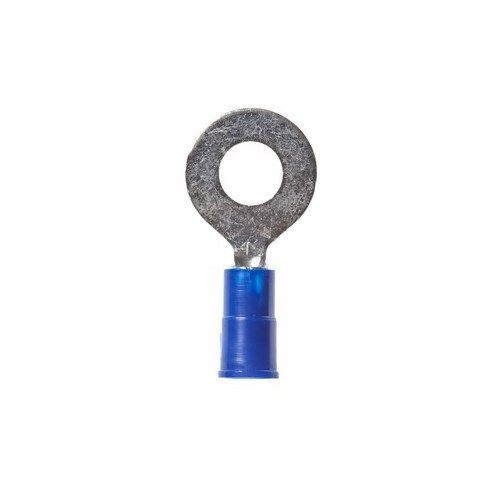

Highland™ RV14-14Q Insulated Standard Ring Terminal, 12 to 10 AWG Conductor, 1.08 in L, Butted Seam Barrel, Vinyl, Blue
Highland™ RV14-14Q Insulated Standard Ring Terminal, 12 to 10 AWG Conductor, 1.08 in L, Butted Seam Barrel, Vinyl, Blue
SKU: 3-MRV14-14Q
Manufacturer Part Number: RV14-14Q
UPC: 051128600399
Documents
Short Description
Features
- Blue vinyl insulated, butted seam barrel ensures a secure fit and offers reliable performance
- Funnel designed, PVC sleeve offers easy insertion of wires
- Standard style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
- Crimp termination
- Free hanging (in-line) mounting
Specification
| Length | 1.08 in |
|---|---|
| Material | Vinyl |
| Specifications | 0.17 in Dia Max Insulation, 0.4 in Clearance |
| Stud Size | 1/4 in |
| Temperature Rating | -40 to 221 deg F |
| Tongue Size | 0.47 in W x 0.03 in THK |
| Tongue Type | Ring |
| Type | Insulated Standard |
| Voltage Rating | 600/1000 VAC |
| Application | Building Fixtures or Luminaires, Signs and Wire Applications |
| Standard & Approvals | UL Recognized File No. LR22190, CSA Certified, RoHS Compliant, UL File No. E23438 |
| Conductor Size | 12 to 10 AWG |
| Barrel Type | Butted Seam |
| Color | Blue |
| Finish | Tin Plated |
| Barrel Size | 0.09 in ID x 0.25 in L |
