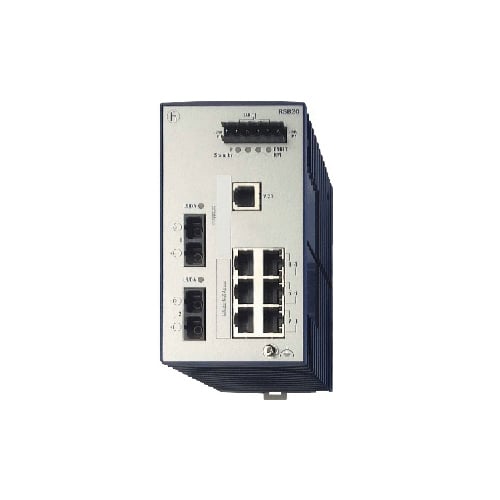

***CLOSEOUT*** Hirschmann™ RSB20-0800M2M2SAAB Basic Managed Ethernet Switch, RJ11 Socket Interface, RJ45 Connector Port, IEEE 802.3 Protocol
***CLOSEOUT*** Hirschmann™ RSB20-0800M2M2SAAB Basic Managed Ethernet Switch, RJ11 Socket Interface, RJ45 Connector Port, IEEE 802.3 Protocol
SKU: HEIRSB20-0800M2M2TAAB
Manufacturer Part Number: RSB20-0800M2M2SAAB
UPC: 020442442794
Documents
Short Description
Features
- Fast EtherNet uplink ports
- 8TX E, pre-configured multicast filtering for EtherNet/IP use
- Allows for quick commissioning without sacrificing switch performance or network diagnostics
- Customizable to the exact features and functions necessary for an application
- These switches eliminate problems caused by dust, dirt, moisture, smoke and insects due to the use of fan-less cooling techniques which eliminate airflow within the switches
- RSB20 switches provide reliability and uptime with a high mean time between failure (MTBF) greater than 58 years
- EtherNet/fast ethernet-switch according to IEEE 802.3, compact, managed, industrial switch for DIN rail, store-and-forward-switching, fanless design
- 8-ports in total, 1. uplink: 100BASE-FX, MM-SC, 2. uplink 100BASE-FX, MM-SC, 6 x standard 10/100 BASE TX, RJ45
- 1 x plug-in terminal block/6-pin/1 x RJ11 socket interface
- 6TX/2FX MM port configuration
Specification
| Closeout | YES |
|---|---|
| Series | RSB20 |
| Enclosure Type | IP20 |
| PowerSupply | 24 VDC |
| Temperature Rating | 0 to 60 deg C |
| Mounting Type | DIN Rail |
| Environmental Conditions | 10 to 95% Humidity |
| Length | 111 mm |
| Protocol | IEEE 802.3 |
| Height | 131 mm |
| Interface | RJ11 Socket |
| Cable Type | Multi-Mode |
| Port Type | RJ45 Connector |
| Type | Basic Managed |
| Width | 71 mm |
