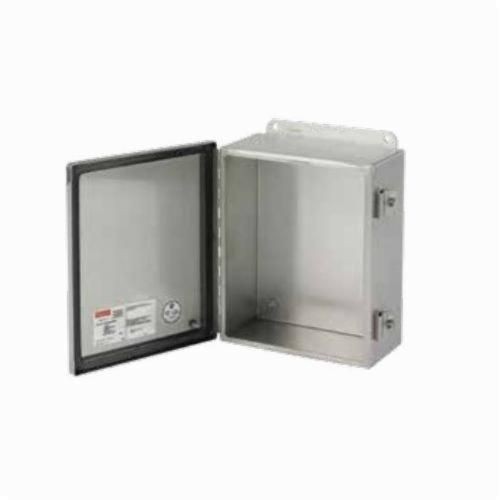

nVent HOFFMAN A51S Junction Box, 14 in L x 12 in W x 6 in D, NEMA 4X, 14 ga 304 Stainless Steel
nVent HOFFMAN A51S Junction Box, 14 in L x 12 in W x 6 in D, NEMA 4X, 14 ga 304 Stainless Steel
SKU: HOFA1412CHNFSS
Manufacturer Part Number: A1412CHNFSS
UPC: 783510563004
Documents
Features
- Seams continuously welded and ground smooth Seamless foam-in-place gasket, stainless steel screws and clamps
- Pull stainless steel continuous hinge pin to remove door
- Weldnuts provided for mounting optional panels and terminal block kits
- Bonding provision on door and body
- 16 gauge cover
Specification
| Length | 14 in |
|---|---|
| Material | 14 ga 304 Stainless Steel |
| Mounting Type | Panel |
| NEMA Rating | NEMA 4X |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Cover Type | Continuous Hinge With Clamp |
| Depth | 6 in |
| Finish | NO 4 Smooth Brushed |
| Panel Size | 12.75 in L x 10.88 in W |
| Series | A51S |
| Width | 12 in |
| Application | Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments |
| Catalog ID | HOFA1412CHNFSS |
