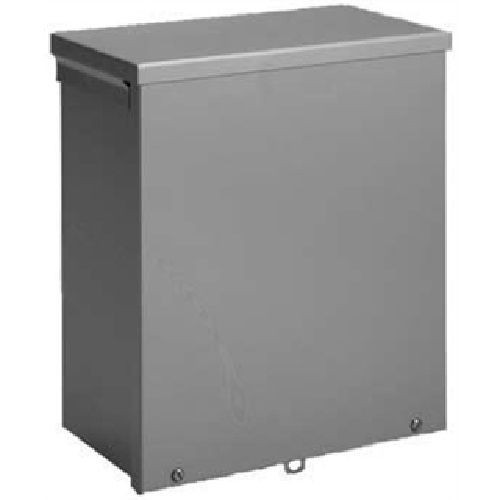

nVent HOFFMAN A20R208HCR Medium Single Door Wall Mount Enclosure, 20 in L x 20 in W x 8 in D, NEMA 3R/IP32, Steel
nVent HOFFMAN A20R208HCR Medium Single Door Wall Mount Enclosure, 20 in L x 20 in W x 8 in D, NEMA 3R/IP32, Steel
SKU: HOFA20R208HCR
Manufacturer Part Number: A20R208HCR
UPC: 783510386900
Documents
Features
- These enclosures have a size range of 16 x 12 x 6-in. to 48 x 36 x 16- in. and meet basic functionality requirements for applications that require protection from rain, sleet, snow or dripping water
- Drip shield top and seam-free sides, front and back protect from rain, snow, or sleet
- 16 gauge plated steel continuous hinge has stainless steel pin
- Cover fastened securely with captive plated steel screws
- Collar studs provided for mounting optional panel
- Hasp and staple provided for padlocking
- No gasketing or knockouts
- 16 or 14 gauge galvanized steel
- ANSI 61 gray
- Galvanized/polyester powder painted
Specification
| Length | 20 in |
|---|---|
| Lock | Hasp and Staple With Padlock |
| Material | Steel |
| Mounting Type | Wall |
| NEMA Rating | NEMA 3R/IP32 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Cover Type | Hinged |
| Depth | 8 in |
| Width | 20 in |
| Finish | Galvanized/Powder Coated |
| Catalog ID | HOFA20R208HCR |
| Standard & Approvals | UL 50, 50E Listed, Type 3R, File No. E27567, cUL Listed per CSA C22.2 No 94, Type 3R File No. E27567, NEMA/EEMAC Type 3R, IEC 60529, RoHS Complaint |
| Type | Medium Single Door |
| Series | A3M |
| Panel Size | 17 x 17 in |
