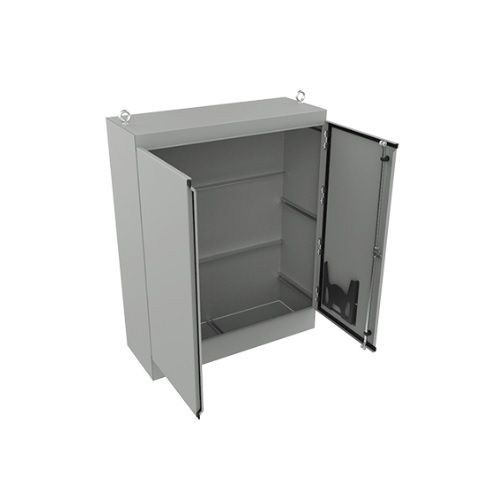

nVent HOFFMAN A907220FSD A30 2-Door Single Access Enclosure, 90.06 in L x 72.06 in W x 20.06 in D, NEMA 12/IP55, Steel
nVent HOFFMAN A907220FSD A30 2-Door Single Access Enclosure, 90.06 in L x 72.06 in W x 20.06 in D, NEMA 12/IP55, Steel
SKU: HOFA907220FSD
Manufacturer Part Number: A907220FSD
UPC: 783510253202
Features
- Seams continuously welded and ground smooth, no holes or knockouts
- Stiffeners on back of 2-door enclosures maintain flatness and increase rigidity
- Lifting eyes for easy handling
- 3-point latches operated by oil-tight key-locking handle
- Concealed, easy-to-remove hinges
- Data pockets are high-impact thermoplastic
- Internal mounting channels welded horizontally to sides at top, bottom and center
- Optional panels and rack mount angles can be mounted anywhere along channels
- Oil-resistant door gasket
- Bonding provision on door
- Provision for mounting fluorescent light
- 12 ga stee
Specification
| Length | 90.06 in |
|---|---|
| Lock | 3-Point Latch/Keyed Handle |
| Material | Steel |
| Mounting Type | Free Stand |
| NEMA Rating | NEMA 12/IP55 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HOFA907220FSD |
| Color | White |
| Cover Type | Hinged |
| Depth | 20.06 in |
| Finish | Polyester Powder Coated |
| Series | A30 |
| Type | 2-Door Single Access |
| Width | 72.06 in |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
