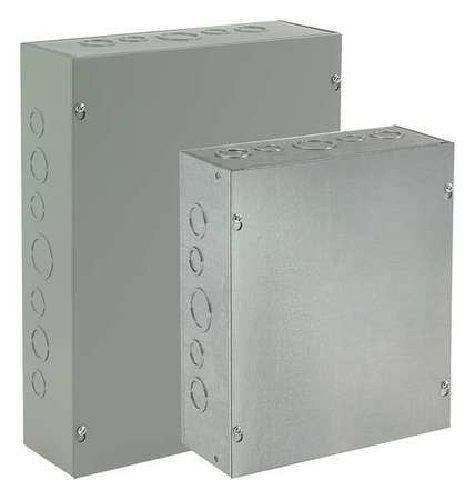

nVent HOFFMAN ASE8X8X4 Pull Box With Knockout, 8 in L x 8 in W x 4 in D, NEMA 1/IP30, Steel
nVent HOFFMAN ASE8X8X4 Pull Box With Knockout, 8 in L x 8 in W x 4 in D, NEMA 1/IP30, Steel
SKU: HOFASE8X8X4
Manufacturer Part Number: ASE8X8X4
UPC: 783510430405
Features
- Unique keyhole screw slots in the cover
- Available with or without knockouts, various sizes of easy-to remove concentric knockouts on all four sides of standard boxes with knockouts
- Optional flush-mounted door frame available
- Optional flush covers
- Flat, removable covers fastened with plated steel screws
- Provision for grounding
- Mounting holes on back of box
- 16, 14 or 12 gauge steel or plated steel
- For flush installations, order flush covers and door frames separately
- Polyester powder coated
Specification
| Length | 8 in |
|---|---|
| Material | Steel |
| Mounting Type | Flush |
| NEMA Rating | NEMA 1/IP30 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Gray |
| Cover Type | Screw |
| Depth | 4 in |
| Finish | Powder Coated |
| Series | A90P1 |
| Width | 8 in |
| Standard & Approvals | UL 50, 50E Listed, Type 1, File No. E27525, cUL Listed per CSA C22.2 No 40, Type 1, File No. E27525, NEMA/EEMAC Type 1, IEC 60529, IP30, RoHS Complaint |
| Application | For commercial and general industrial applications that require a junction or pull box |
| Cable Entry | (8) 3/4 - 1 in Knockouts, (8) 1/2 - 3/4 in Knockouts |
| Catalog ID | HOFASE8X8X4 |
