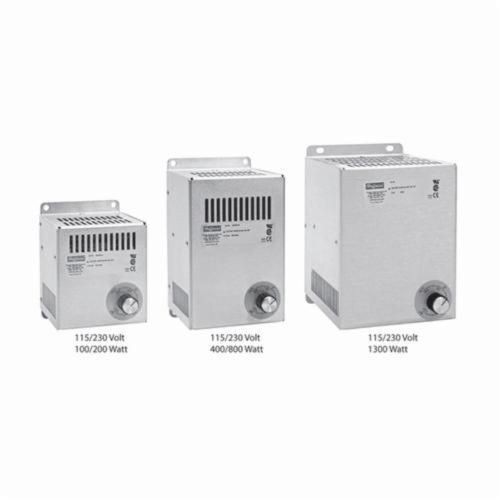

nVent HOFFMAN DAH Electric Heater, 200 W, 230 VAC, 0.95 A, 0 - 100 deg F

Selected DAH2002AnVent HOFFMAN DAH Electric Heater, 400 W, 115 VAC, 3.72 A, 0 - 100 deg F
DAH2002AnVent HOFFMAN DAH Electric Heater, 400 W, 115 VAC, 3.72 A, 0 - 100 deg F

Documents

Short Description

Add to your comfort and extend your swimming season with one of our energy-efficient and reliable heaters and heat pumps. All our heaters deliver fast heat-up times, low operating costs, and long life. Rugged housings are built to withstand the elements, and compact, attractive designs blend into any environment.

Features

  • Thermostat range adjustable from 0 deg F to 100 deg F (-18 deg C to 38 deg C)
  • Ball bearing fan
  • Terminal strip with clamp connector that accepts both solid and stranded wire
  • 50/60 Hz frequency rating
  • Protects mechanical, electrical and electronic equipment from low temperatures, condensation and corrosion with this thermostatically controlled, fan-driven heater that maintains a stable enclosure temperature
  • Fan draws cool air from the bottom of the enclosure and passes this air across the thermostat and heating element before being released into enclosure cavity. Heated air is discharged through the top of the heater unit
  • Bulletin D85 (Hoffman thermal management products)
  • 4.8 in depth

Specification

Material
Aluminum
Mounting Type
Panel
Overall Height
5-1/2 in
Overall Width
4 in
Power Rating
200 W
Series
DAH
Temperature Rating
0 to 100 deg F
Voltage Rating
230 VAC
Standard & Approvals
CE Certified, LR42186 CSA Certified, RoHS Complaint, UL E61997, 508A Listed
Amperage Rating
0.95 A
Domestic/Import
Domestic
Finish
Brushed Aluminum
Includes
Four 10-32 UNF x Self-Tapping Screws
