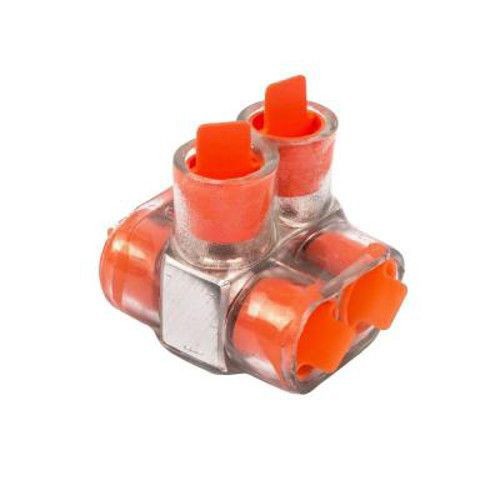

Homac® CSB-2/0-2 2-Way 2-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum

Selected Homac® CSB-2/0-2 2-Way 2-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum
Homac® CSB-2/0-2 2-Way 2-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum

Documents

Short Description

Homac® is a complete line of Underground and Substation connectors and is recognized as an industry leader for its Flood-Seal™ technologies and custom solutions.

Features

  • Versatile design
  • 2 poles
  • Made of aluminum
  • Clear PVC insulation
  • Above ground pedestal connectors and amp, covers
  • Safe and time saving installation with no taping required
  • Wide range of cable sizes and number of outlets available in one way configurations

Specification

Material
Aluminum
Minimum Order Qty
1
Order Interval
1
Catalog ID
BLKCSB-2/0-2
Conductor Type
Aluminum/Copper
Dimensions
1.63 in L x 1.68 in W x 1.63 in H
Specifications
3/16 in Hex Screw
Temperature Rating
90 deg C
Type
Two-Way
Voltage Rating
600 VAC
Standard & Approvals
ANSI C119.4, RoHS Compliant, UL E9809 Listed
