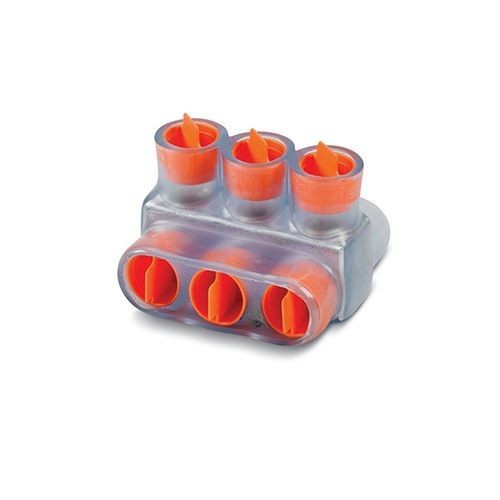

Homac® CSB-250-3 2-Way 3-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum
Homac® CSB-250-3 2-Way 3-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum
SKU: BLKCSB-250-3
Manufacturer Part Number: CSB-250-3
UPC: 783786714711
Short Description
Features
- Versatile design
- 3 poles
- Made of aluminum
- Clear PVC insulation
- Above ground pedestal connectors and amp, covers
- Safe and time saving installation with no taping required
- Wide range of cable sizes and number of outlets available in one way configurations
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | BLKCSB-250-3 |
| Conductor Type | Aluminum/Copper |
| Dimensions | 3.09 in L x 2.64 in W x 2.13 in H |
| Temperature Rating | 90 deg C |
| Type | Two-Way |
| Voltage Rating | 600 VAC |
| Standard & Approvals | ANSI C119.4, RoHS Compliant, UL E9809 Listed |
| Specifications | 5/16 in Hex Screw |
