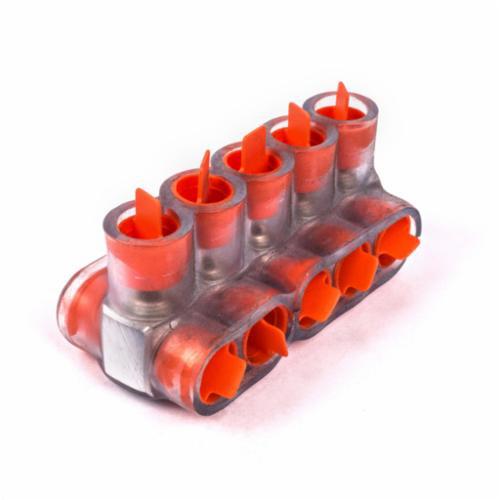

Homac® CSB-350-5 2-Way 5-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum

Selected CSB-350-5Homac® CSB-350-5 2-Way 5-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum
CSB-350-5Homac® CSB-350-5 2-Way 5-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum

Documents

Short Description

Homac® is a complete line of Underground and Substation connectors and is recognized as an industry leader for its Flood-Seal™ technologies and custom solutions.

Features

  • Versatile design
  • 5 poles
  • Made of aluminum
  • Clear PVC insulation
  • Above ground pedestal connectors and amp, covers
  • Safe and time saving installation with no taping required
  • Wide range of cable sizes and number of outlets available in one way configurations

Specification

Material
Aluminum
Minimum Order Qty
1
Order Interval
1
Catalog ID
BLKCSB-350-5
Conductor Type
Aluminum/Copper
Dimensions
5.28 in L x 3 in W x 2.5 in H
Specifications
3/8 in Hex Screw
Type
Two-Way
Voltage Rating
600 VAC
Standard & Approvals
ANSI C119.4, RoHS Compliant, UL E9809 Listed
