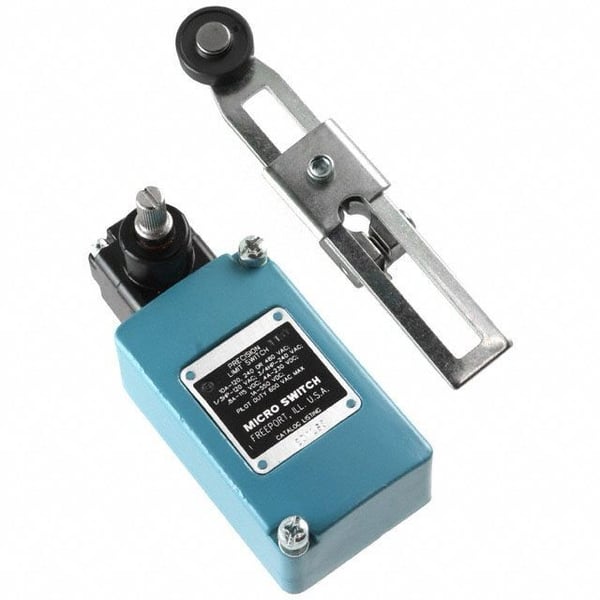

Honeywell MICRO SWITCH™ 201LS3 LS Series Compact General Purpose Limit Switch, 120/240/480 VAC, 115/230/550 VDC, 0.1 to 10 A, Side Rotary Lever Actuator, 1NO-1NC, SPDT Contact, 1 Poles

Selected Honeywell MICRO SWITCH™ 201LS3 LS Series Compact General Purpose Limit Switch, 120/240/480 VAC, 115/230/550 VDC, 0.1 to 10 A, Side Rotary Lever Actuator, 1NO-1NC, SPDT Contact, 1 Poles
Honeywell MICRO SWITCH™ 201LS3 LS Series Compact General Purpose Limit Switch, 120/240/480 VAC, 115/230/550 VDC, 0.1 to 10 A, Side Rotary Lever Actuator, 1NO-1NC, SPDT Contact, 1 Poles

Documents

Short Description

MICRO SWITCH LS Series Limit Switches are available in standard and plug-in configurations. Under severe conditions, its durable and dependable design provides longevity, precision, and consistent repeatability over millions of operations. The compact size and adjustable features propel the LS Series to flourish in a variety of settings under space constraint without sacrificing reliability. Its construction is oil-tight, water-tight and dust tight, and includes die-cast housing, heads and actuators. An assortment of heads and actuators provides a solution for a variety of applications.

Features

  • 0.51 N-m (4.5 in-lb) maximum operating force
  • 8.13 N-m (6 in-lb) maximum full over travel force
  • 0.08 N-m (0.75 in-lb) minimum release force
  • 20 deg maximum pretravel
  • 30 deg minimum over travel
  • 12 deg maximum differential travel
  • Plug-in housing style
  • 1.5 in to 3.5 in adjustable length lever with back mounted steel rollers (0.75 in diameter x 1/4 in width)
  • Industrial sealed
  • 18PA1 terminal block required which must be ordered separately
  • Mode of operation is field adjustable
  • 10 A inductive/0.8 A resistive/0.4 resistive/0.1 A resistive current

Specification

Material
Die-Cast Zinc
Number Of Poles
1
Operating Temperature
-29 to 71 deg C
Minimum Order Qty
1
Order Interval
1
Action
Snap/Double Break
Actuator
Side Rotary Lever
Amperage Rating
0.1 to 10 A
Catalog ID
SEL201LS3
Connection Type
1/2-14 NPT
Contact Configuration
1NC-1NO SPDT
Enclosure Type
NEMA 1/3/4/6/13
Series
LS
Size
40 mm L x 40 mm W x 70 mm H
Type
Compact/General Purpose
Voltage Rating
120/240/480 VAC, 115/230/550 VDC
Application
For machine tools, conveyors, material handling, metal fabrication equipment and lift trucks
