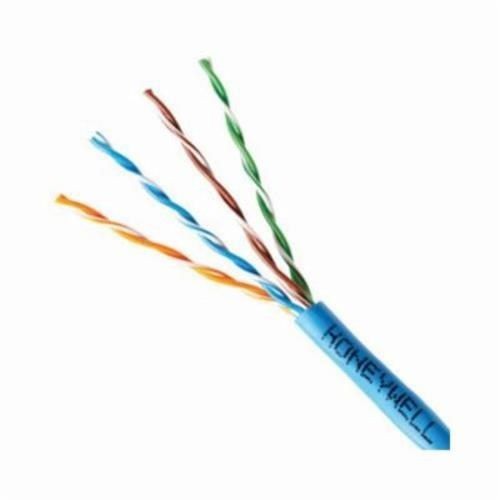

Genesis Cable 50781104 Genesis® Cat 5e Unshielded Communication Cable, Pull Box Packaging, 300 VAC, (4 Pairs) 24 AWG Bare Solid Copper Conductor, 1000 ft L

Selected Honeywell 50781104 Genesis® Cat 5e Unshielded Communication Cable, Pull Box Packaging, 300 VAC, (4 Pairs) 24 AWG Bare Solid Copper Conductor, 1000 ft L
Honeywell 50781104 Genesis® Cat 5e Unshielded Communication Cable, Pull Box Packaging, 300 VAC, (4 Pairs) 24 AWG Bare Solid Copper Conductor, 1000 ft L

Documents

Short Description

Honeywell offers a series of high-performing network category cables to provide optimal signal speed and integrity throughout a wide range of demanding applications. Keeping up with rapidly-evolving technology and data transfer requirements, while anticipating future needs, Honeywell network cables provide solutions for today with the ability to adapt to the future. Picking the right cable for a job is an important decision, and with the right solutions to choose from, Honeywell makes it easy to select the right network cable for you.

Features

  • Blue and white/blue for 1 pair of conductor, orange and white/orange for 2 pair of conductor, green and white/green for 3 pair of conductor, brown and white/brown for 4 pair of conductor
  • 9.38 Ohm/100 m DC resistance
  • 5.6 nF/100 m maximum, 4.9 nF/100 m nominal capacitance
  • 69% velocity propagation
  • 570 ns/100 m maximum, 515 ns/100 m nominal propagation delay
  • 4 pair Cat 5e unshielded twisted pair (UTP) cable

Specification

Insulation Material
HDPE/PP
Jacket Color
Red
Jacket Material
PVC
Length
1000 ft
Number of Conductors
4 Pair
Outside Diameter
0.2 in
Minimum Order Qty
1
Order Interval
1
Conductor Size
24 AWG
Conductor Type
Solid Bare Copper
Resistance
7.6 Ohm/100 m
Type
Cat 5e Unshielded
Voltage Rating
300 VAC
Application
Government, Military, Gaming Industry, Data Centers, Labs, Financial Institutions, Industrial, Hospitals, Large Office Buildings, Universities, Telecom Rooms, Shopping Malls and Stadiums
Standard & Approvals
UL, ETL Listed, CMR, CL2R, FT4 Listed, RoHS Compliant
Temperature Rating
-20 to 75 Deg C
Series
Genesis
Catalog ID
WCEGEN5078-11-04
