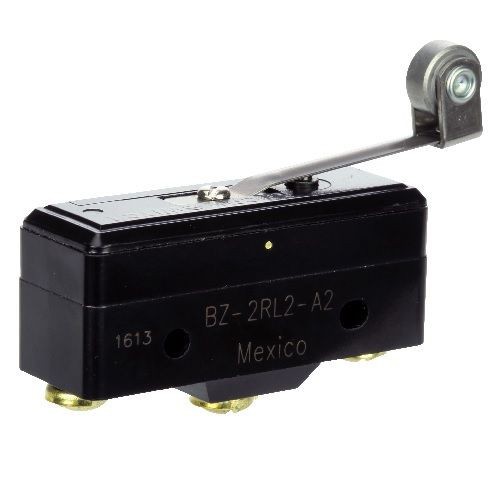

Honeywell MICRO SWITCH™ BZ-2RL2-A2 Large Premium Standard Basic Switch, 15 A at 125 VAC, 50/60 Hz, SPDT Contact, 1 Poles
Honeywell MICRO SWITCH™ BZ-2RL2-A2 Large Premium Standard Basic Switch, 15 A at 125 VAC, 50/60 Hz, SPDT Contact, 1 Poles
SKU: SELBZ-2RL2-A2
Manufacturer Part Number: BZ-2RL2-A2
UPC: 066119113872
Documents
Features
- The switch's elongated mounting hole allows for easier, more accurate mounting
- Used in applications where very tight and sensitive control is required between the operate and release points
- -55 to 85 deg C operating temperature
- 2000 V between each terminal and ground dielectric strength, premium large basics SPDT
- 0.5 mm nominal break distance (minimum distance between separated mating contacts in fully open position)
- Silver contacts
- Moving contact rivet construction
- Choice of actuation, termination and operating characteristics
- Accepted world-wide standard "Large Basic" switch
- Low operating force and differential travel
- Bottom facing NO 8 screws and cup washers terminal, recommended for force and stability of the flexible leaf with roller
- Plastic material
- 15 A, 125/250/480 VAC, 1/8 hp at 125 VAC, 1/4 hp at 250 VAC, 1/2 A at 125 VDC, 1/4 A at 250 VDC electrical rating
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Mounting | Threaded |
| Number Of Poles | 1 |
| Operating Cycles | 20000000 Cycles |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Series | BZ |
| Terminal Type | Screw |
| Environmental Conditions | 1.5 mm Peak-to-Peak Amplitude, Frequency 10 to 55 Hz, For 2 Continuous Hours |
| Electrical Rating | 15 A at 125 VAC |
| Dimensions | 2 in L x 0.7 in W x 1 in H |
| Catalog ID | SELBZ-2RL2-A2 |
| Actuator Length | 49.49 mm |
| Actuator | Roller Lever |
| Actuating Force | 1.39 N |
| Standard & Approvals | UL E12252 Listed, CSA LR41370 Certified, ENEC, CE Marked |
| Application | Irrigation Systems, Semi-Trailer Trucks, Timing Devices, Office Equipment, Test Instruments, Medical/Dental Equipment, HVAC Equipment and Manually Operated Devices |
| Type | Large Premium Standard |
| Contact Configuration | SPDT |
| Material | Phenolic |
