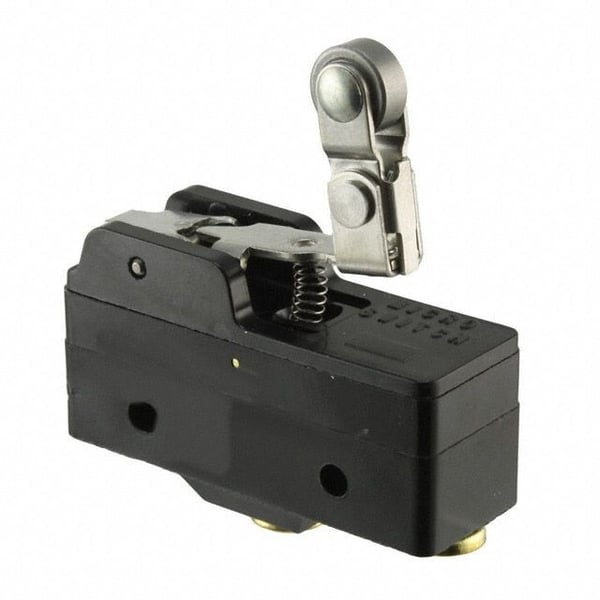

Honeywell MICRO SWITCH™ BZ-2RW826-A2 BZ Series Large Premium Standard Basic Switch, 15 A at 250 VAC, 50/60 Hz, SPDT, 1 Poles

Selected Honeywell MICRO SWITCH™ BZ-2RW826-A2 BZ Series Large Premium Standard Basic Switch, 15 A at 250 VAC, 50/60 Hz, SPDT, 1 Poles
Honeywell MICRO SWITCH™ BZ-2RW826-A2 BZ Series Large Premium Standard Basic Switch, 15 A at 250 VAC, 50/60 Hz, SPDT, 1 Poles

Documents

Short Description

MICRO SWITCH BZ/BA/BM/BE Series premium, large snap-action switches offer precision operation and sensitive differential travel. These Series meet various international agency requirements, and are often used for precision on/off applications, as well as end of limit, presence/absence, and manual operator interface functions. Configured options with BZ, BA, BM, and BE switches provide a wide variety of operating and interface characteristics.

Features

  • The switch's elongated mounting hole allows for easier, more accurate mounting
  • Used in applications where very tight and sensitive control is required between the operate and release points
  • -55 to 85 deg C operating temperature
  • 2000 V between each terminal and ground dielectric strength, premium large basics SPDT
  • 0.5 mm nominal break distance (minimum distance between separated mating contacts in fully open position)
  • Silver contacts
  • 2.39 mm over travel, 0.42 N release force
  • 0.08 to 0.51 mm differential travel
  • 0.33 Nm tightening torque, 25.4 mm mounting centers
  • Long mechanical life up to 20,000,000 cycles at 95% survival
  • Moving contact rivet construction
  • Choice of actuation, termination and operating characteristics
  • Accepted world-wide standard "Large Basic" switch
  • Low operating force and differential travel
  • Bottom facing NO 8 screws and cup washers terminal, recommended for one way roller 0.37 in dia x 0.15 in wide roller
  • Plastic material
  • 15 A, 125/250/480 VAC, 1/8 hp at 125 VAC, 1/4 hp at 250 VAC, 1/2 A at 125 VDC, 1/4 A at 250 VDC electrical rating

Specification

Frequency Rating
50/60 Hz
Material
Phenolic
Mounting
Threaded
Number Of Poles
1
Operating Cycles
20000000 Cycles
Series
BZ
Terminal Type
Screw
Type
Large Premium Standard
Application
Irrigation Systems, Semi-Trailer Trucks, Timing Devices, Office Equipment, Test Instruments, Medical/Dental Equipment, HVAC Equipment and Manually Operated Devices
Standard & Approvals
UL E12252 Listed, CSA LR41370 Certified, ENEC, CE Marked
Dimensions
2 in L x 0.7 in W x 1 in H
Actuating Force
1.67 N
Actuator
Rigid Roller Lever
Contact Configuration
SPDT
Electrical Rating
15 A at 250 VAC
Environmental Conditions
1.5 mm Peak-to-Peak Amplitude, Frequency 10 to 55 Hz, For 2 Continuous Hours
